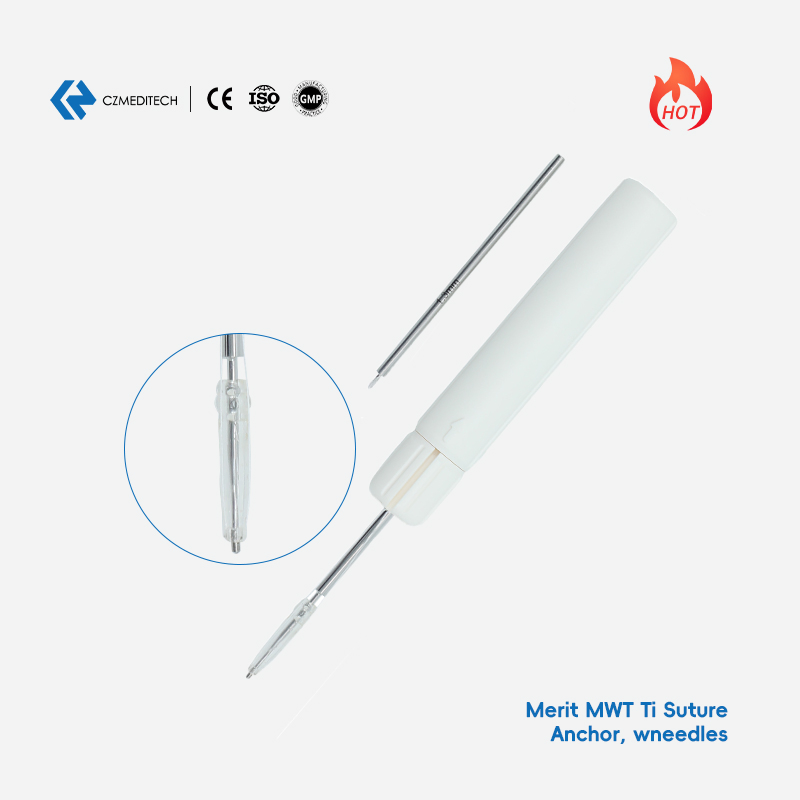

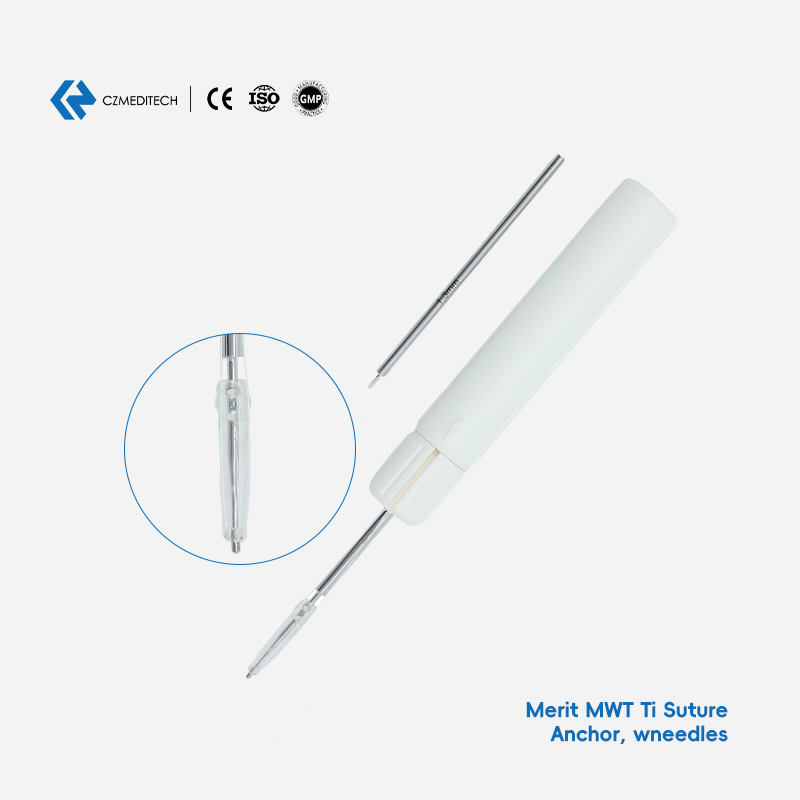

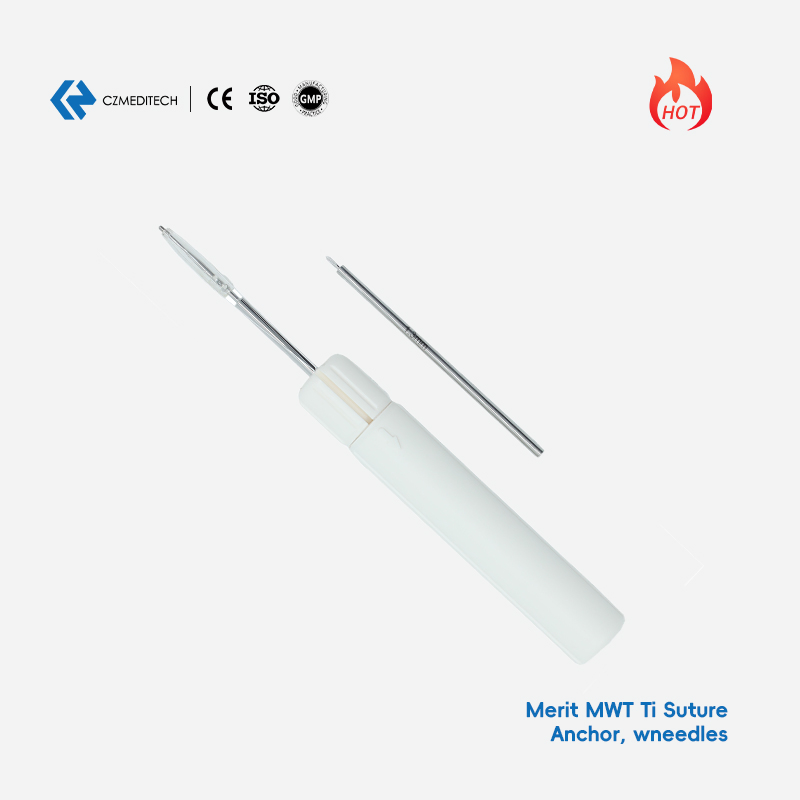

The Merit MWT titanium alloy wire anchor system offers a comprehensive solution for soft tissue fixation in extremely small bone areas. These miniature anchors, with diameters ranging from 1.3mm to 2.8mm, are made of medical-grade titanium alloy and come pre-equipped with DSM UHMWPE sutures and suture needles.
Each anchor is equipped with a matching depth-limiting drill bit, allowing for precise control of the drilling depth without the need for additional measuring tools. The complete instrument kit ensures precise implantation and is an ideal choice for hand, foot, wrist, and pediatric surgical procedures.
| REF. NO. | Diameter × Length | Suture (Spec.) | Needle Spec. | Matching Drill Bit |
|---|---|---|---|---|
| S68.001 | 1.3×3.6mm | #3-0 White 920mm | 1/2 circle: Ø0.8×14mm | 1.3 Limited Bit |
| S68.002 | 1.8×5.4mm | #2-0 White 920mm | 1/2 circle: Ø0.8×12mm | 1.8 Limited Bit |
| S68.003 | 2.4×9.6mm | #2 White 1000mm | 1/2 circle: Ø1.1×17mm | 2.4 Limited Bit |
| S68.004 | 2.8×11mm | #2 White/Blue 1000mm | 1/2 circle: Ø1.1×17mm | 2.8 Limited Bit |

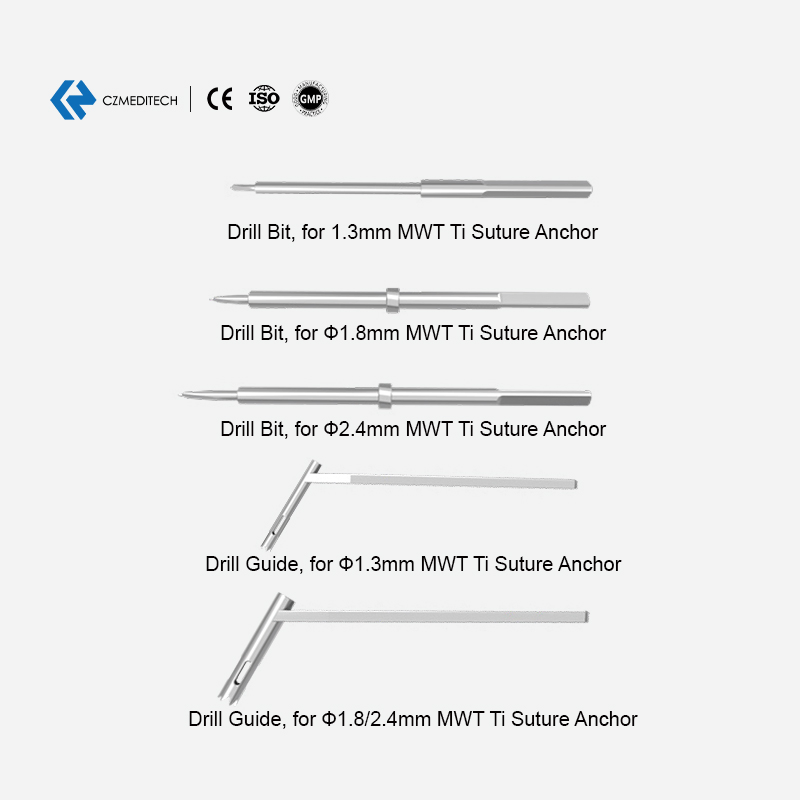

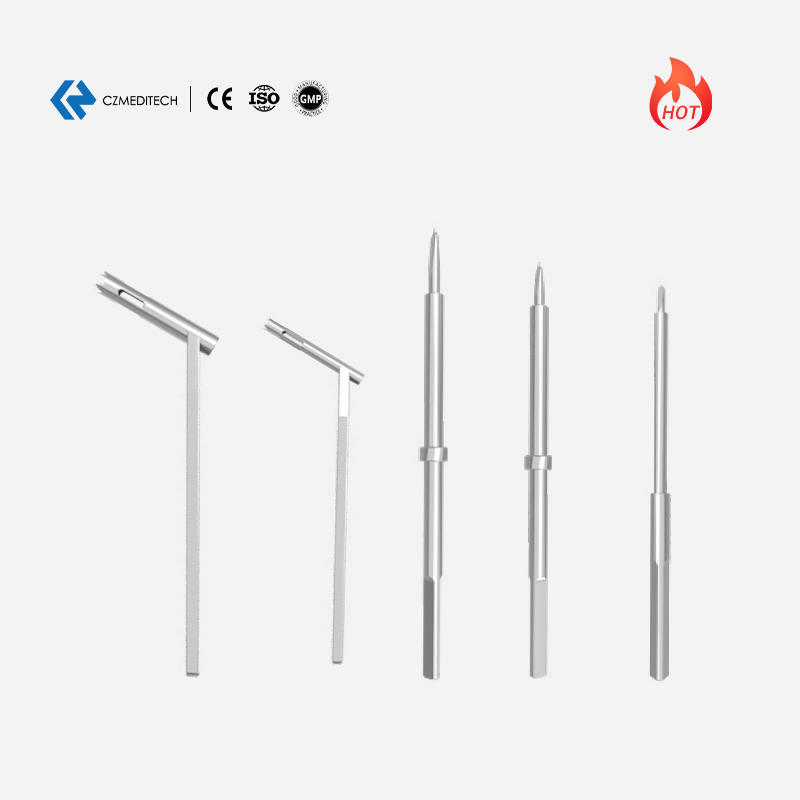

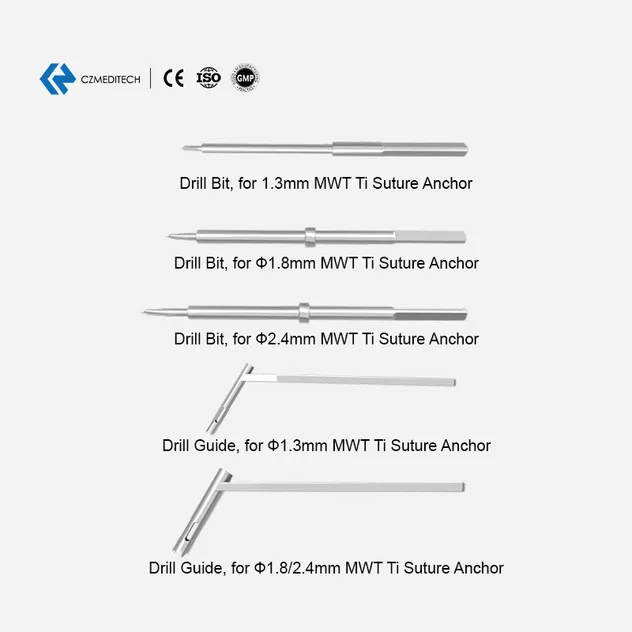

| Drill REF. NO. | Specification Description | Applicable Anchor |
|---|---|---|
| 114811800 | Drill Bit for 1.3mm MWT Ti Suture Anchor | S68.001 |
| 114811900 | Drill Bit for Ø1.8mm MWT Ti Suture Anchor | S68.002 |
| 114812000 | Drill Bit for Ø2.4mm MWT Ti Suture Anchor | S68.003, S68.004 |
| 114812100 | Drill Guide for Ø1.3mm MWT Ti Suture Anchor | S68.001 |
| 115432300 | Drill Guide for Ø1.8/2.4mm MWT Ti Suture Anchor | S68.002+ |
