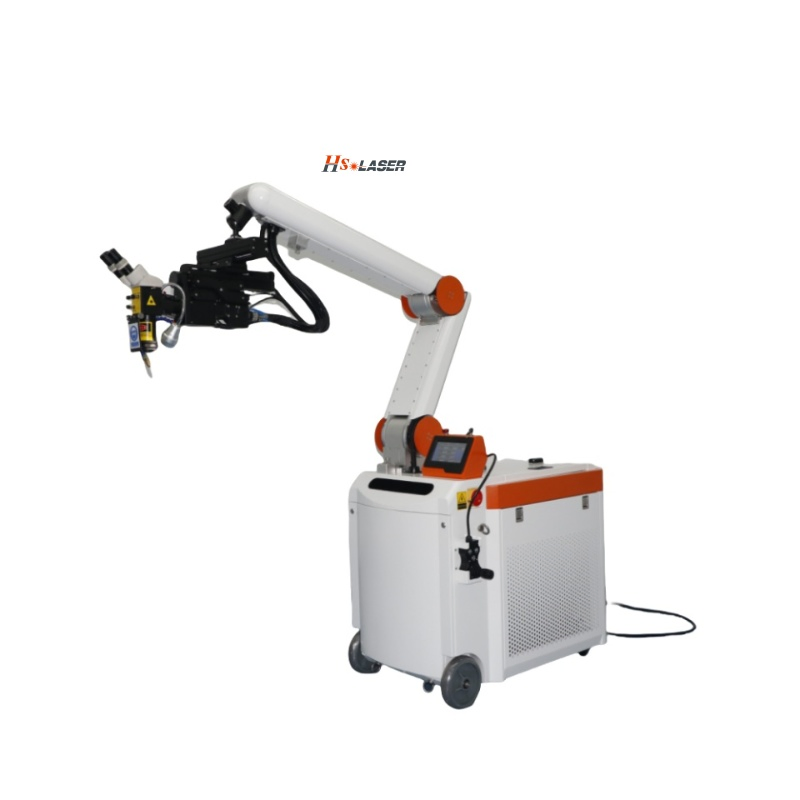

High Power Fiber Laser Welding Machine for Joint Arm Molds

1 / 5

High Power Fiber Laser Welding Machine for Joint Arm Molds

Customization:	Available
After-sales Service:	Online Services
Warranty:	2 Years

Send Inquiry

Product Description

Basic Information

Model NO.

HS-MOW150 HS-MOW300 HS-HW1500 HS-HW2000

Application

Biomedicine, Electronic, Automotive, Powder Metallurgy, Manufacturing

Technical Class

Continuous Wave Laser

Control

Manual

Power Density

Deep Fusion Welding

Laser Classification

Optical Fiber Laser

Type

Laser Mold Welding Machine

Laser Power

Qcw 150W 200W 300 Cw 1500W

Laser Wavelength

1080±10nm

Z Crane Arm

Rotate 360 Degree ,up and Down

Pulse Width

150W-300W (1-20ms), 1500W-2000W (1-60ms)

Spot Diameter

0.2 to 5mm

Cooling System

Water Cooler

Package Gross Weight

380.000kg

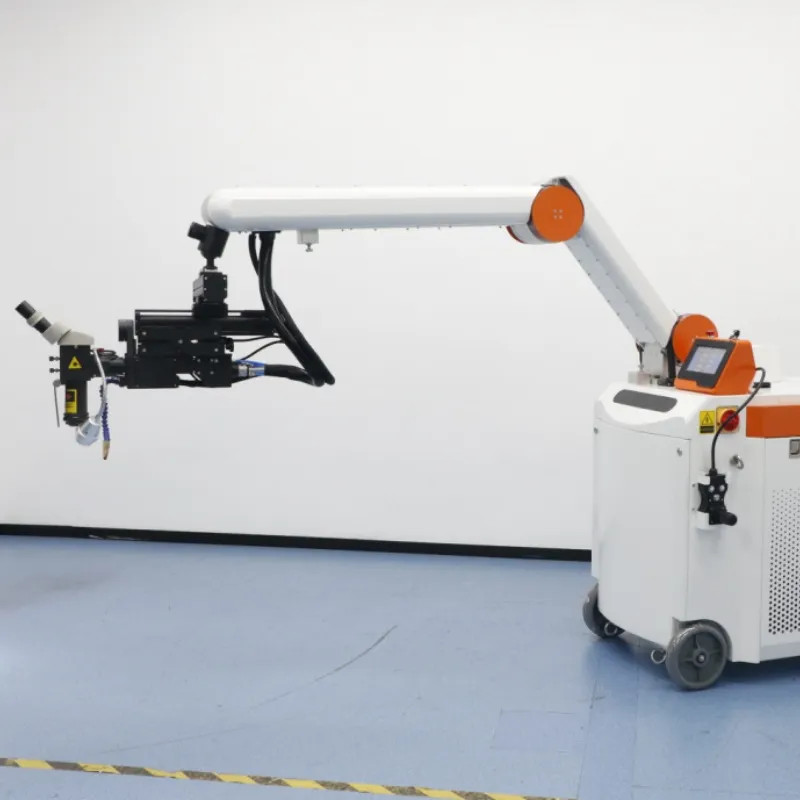

Fiber Laser Welding Machine for Mold Repairing

This is a new design CW & QCW fiber laser welding machine for mold repair. QCW lasers have power options of 150W, 200W, and 300W, while CW fiber lasers offer 1500W and 2000W options.

The mold welding machine is specifically adapted to repair various molds, including plastic injection molds, automotive interior molds, and mobile phone bottom plate molds. It can restore molds to 95-99% of their original condition, saving significant costs compared to purchasing new molds.

Mold Laser Welder Advantages

1

High Precision and Control: Capable of micro-welding small components with a minimal heat-affected zone (HAZ), preventing deformation.
2

Superior Beam Quality: Higher beam quality (M² ~1.1) allows for tighter focus and deeper penetration.
3

Low Heat Input: Suitable for temperature-sensitive materials like tool steels (H13, SKD61, etc.).
4

Durability: Fiber lasers have a lifespan of 50,000-100,000 hours with minimal maintenance.
5

Energy Efficiency: High conversion efficiency (~30-40%) compared to traditional YAG lasers.

Key Features

Easy Parameter Control

Simple setup for Current, Pulse, Frequency, and Spot diameter. Features a 7-inch screen and a secondary circular adjustment screen for quick rotations of power and pulse settings.

Advanced Mobility

The electric module supports multi-directional movement (forward, backward, left, right), and the electric rocker arm provides remote control for boom telescopic adjustments.

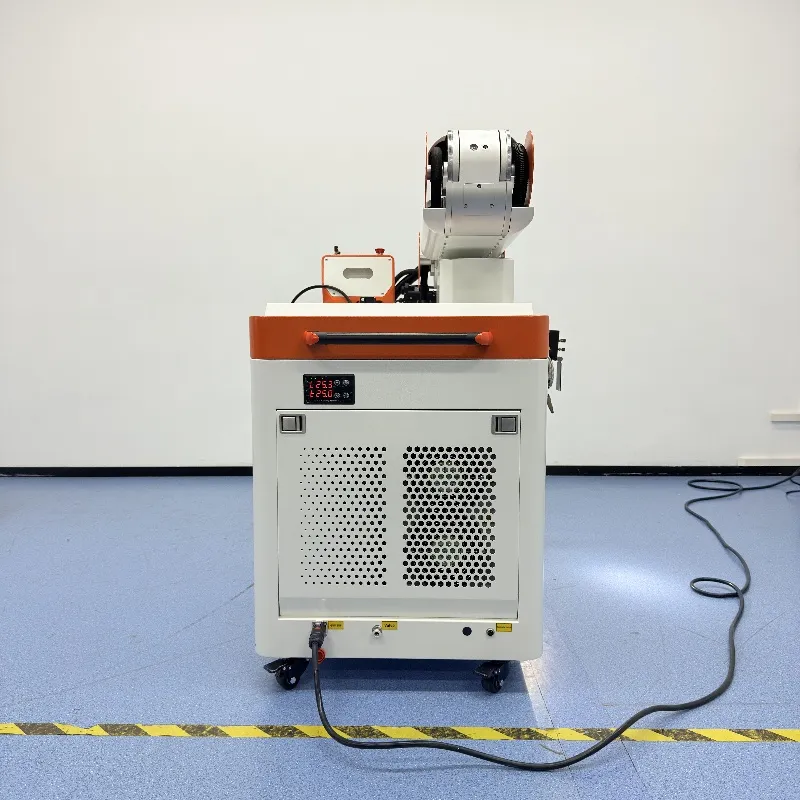

Flexible Design

Equipped with a foldable and retractable boom for versatile welding positions.

Technical Parameters

Specification	QCW Series (150W-300W)	CW Series (1500W-2000W)
Laser Type	Fiber Laser Source (1080±10nm)
Pulse Width	1-20ms	1-60ms
Frequency	1-30Hz	1-25Hz
Spot Diameter	0.2 to 5mm
Crane Arm	360° Rotation, Up/Down movement
Cooler Capacity	10L / 16L	20L
Total Power	2kw - 3kw	10kw - 12kw
Fiber Length	10 Meters

Frequently Asked Questions

What types of molds can be repaired with this machine?

It is ideal for plastic injection molds, automotive interior molds, mobile phone bottom plate molds, and components made of high-hardness tool steels like H13 and SKD61.

What is the difference between QCW and CW laser options?

QCW (Quasi-Continuous Wave) is perfect for high-peak power pulse applications (150W-300W), while CW (Continuous Wave) provides steady high power (1500W-2000W) for deeper fusion welding.

How long does the fiber laser source last?

The fiber laser source is highly durable, with an estimated lifespan ranging from 50,000 to 100,000 operational hours.

Does the machine require specialized water for cooling?

Yes, to maintain system longevity, the water cooler should be filled with distilled water or pure water.

Can the parameters be adjusted during the welding process?

Yes, the machine features a main 7-inch control screen and an additional circular parameter adjustment screen for rotating control of power and frequency.

What is the warranty period for this equipment?

The machine comes with a standard 2-year warranty period for reliable long-term operation.
