Product Description

i

Basic Information

Model NO.
TY-CLP-204
Color
Silver
Application
Foot and Ankle
Material
Pure Titanium
Properties
Implant Materials & Artificial Organs
Instrument Classification
Class III
Warranty
One Year
After-Sale Service
Online Technical Support
Package
Sterile/Non-Sterile Package
Certificate
CE/ISO 13485
OEM
Accepted
Transport Package
Carton
HS Code
9021100000
Production Capacity
10000 pieces/Year
P

Product Description

Foot and Ankle Calcaneal Locking Plate

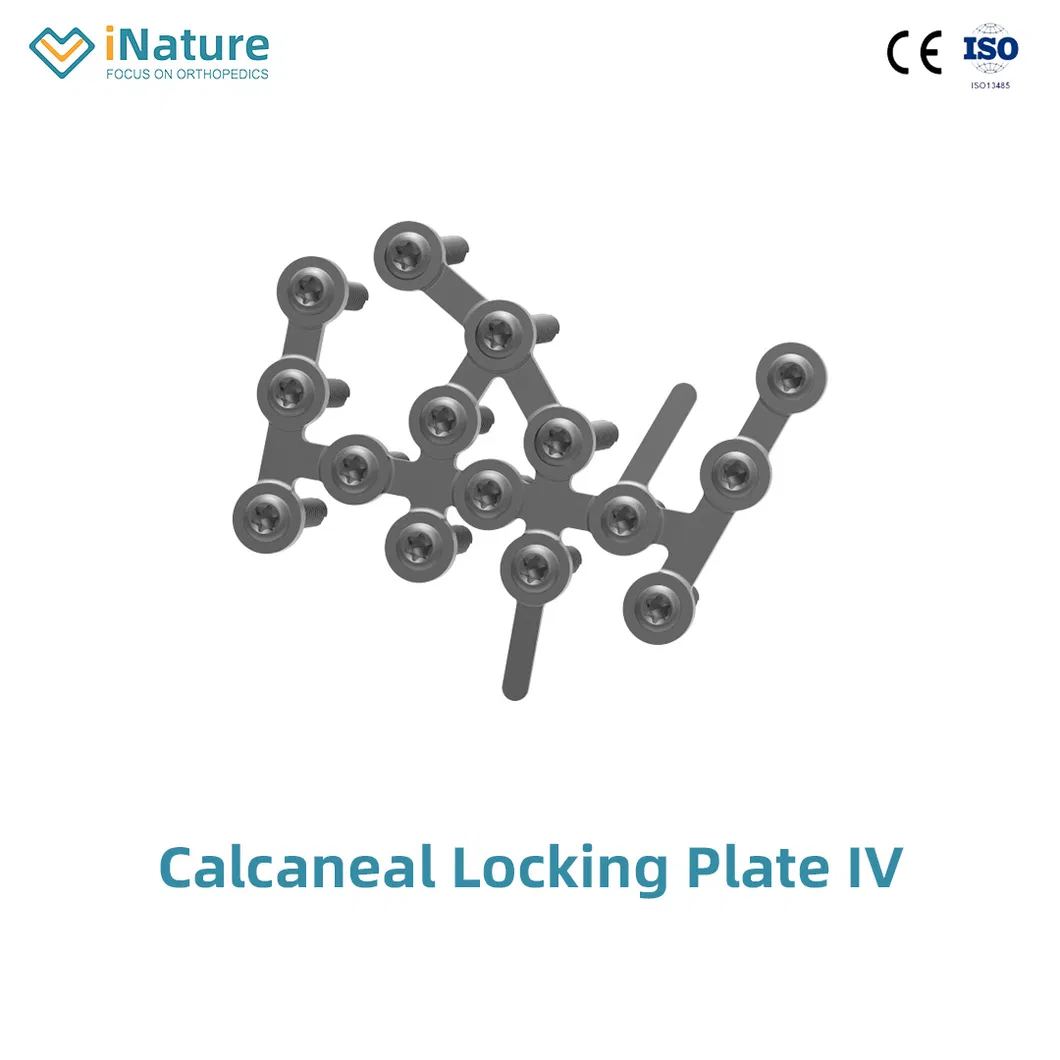

Calcaneal Locking Plate IV

Code: 251515XXX
Screw Size: HC3.5

Specifications

Plate Type Name and Screw Code Specification W/mm T/mm L/mm
Calcaneal Locking Plate III HC 3.5 251514011 Large, L / 2 71.9
251514012 Large, R / 2 71.9
251514021 Medial, L / 2 66.5
251514022 Medial, R / 2 66.5
251514031 Small, L / 2 59.7
251514032 Small, R / 2 59.7

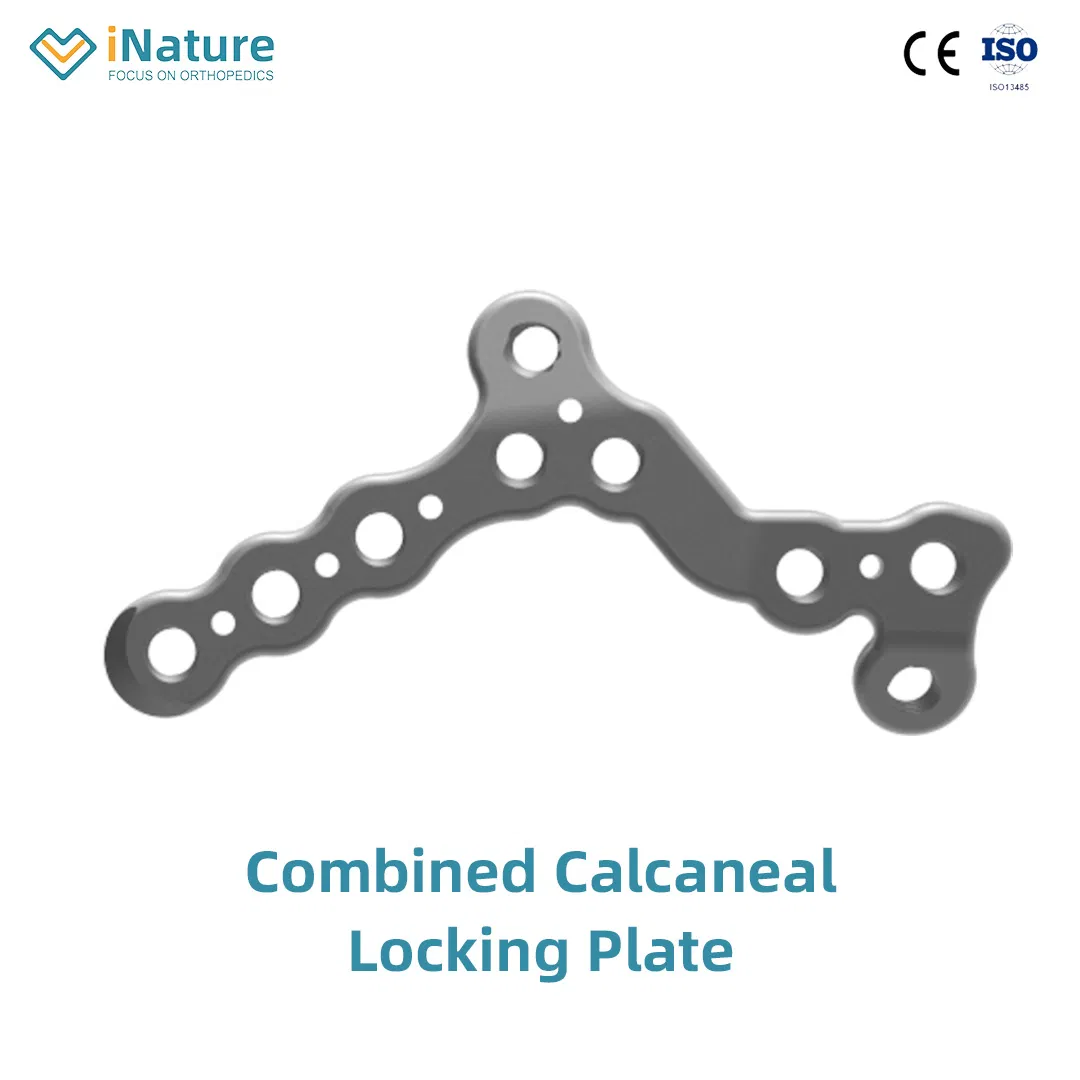

Combined Calcaneal Locking Plate HC 3.5 251516011 Small, L 10 1.8 57.4
251516012 Small, R 10 1.8 57.4
251516021 Medial, L 10 1.8 59.4
251516022 Medial, R 10 1.8 59.4
251516031 Large, L 10 1.8 68.9
251516032 Large, R 10 1.8 68.9

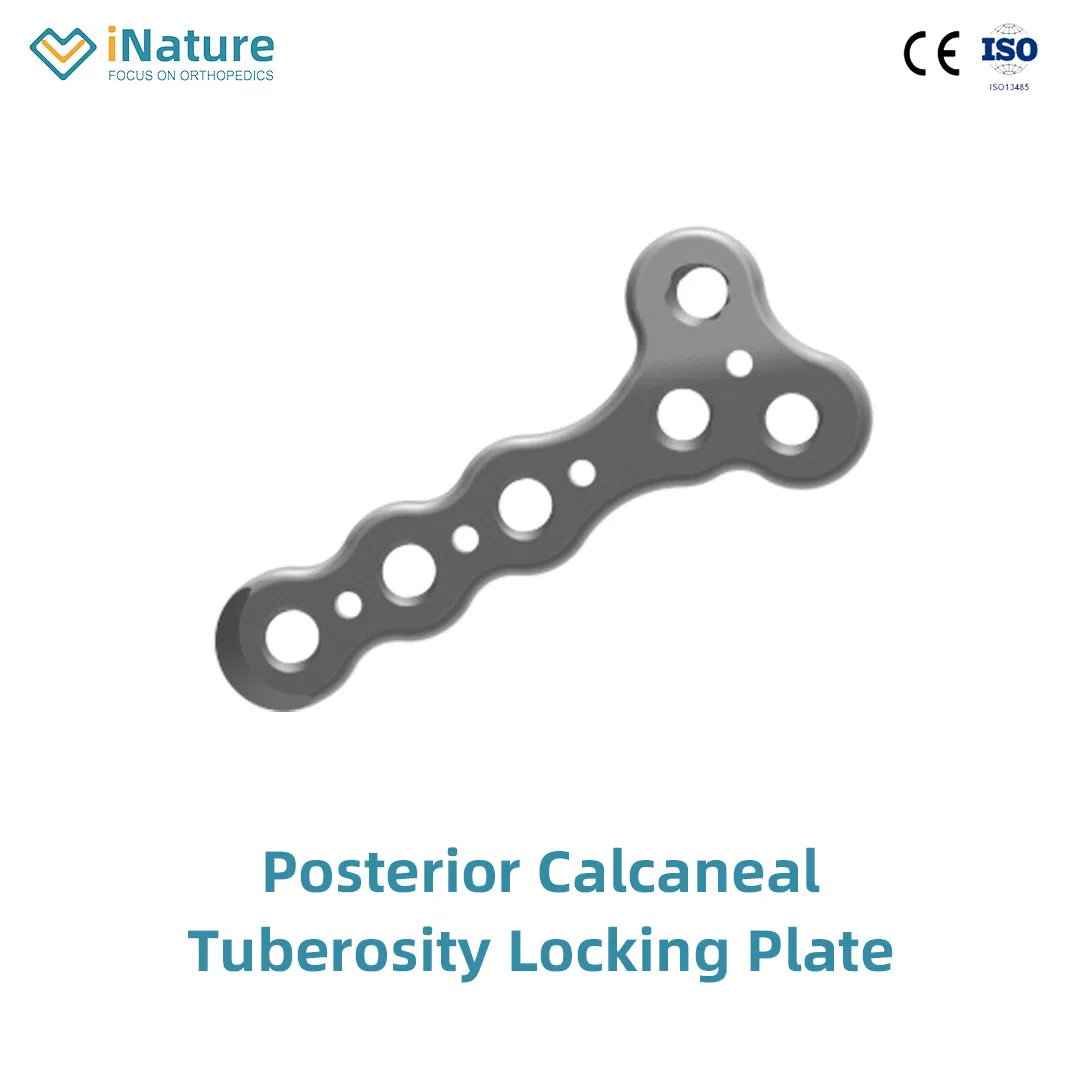

Posterior Calcaneal Tuberosity Locking Plate HC 3.5 251517011 Small, L 10 1.8 40.2
251517012 Small, R 10 1.8 40.2
251517021 Large, L 10 1.8 47.8
251517022 Large, R 10 1.8 47.8

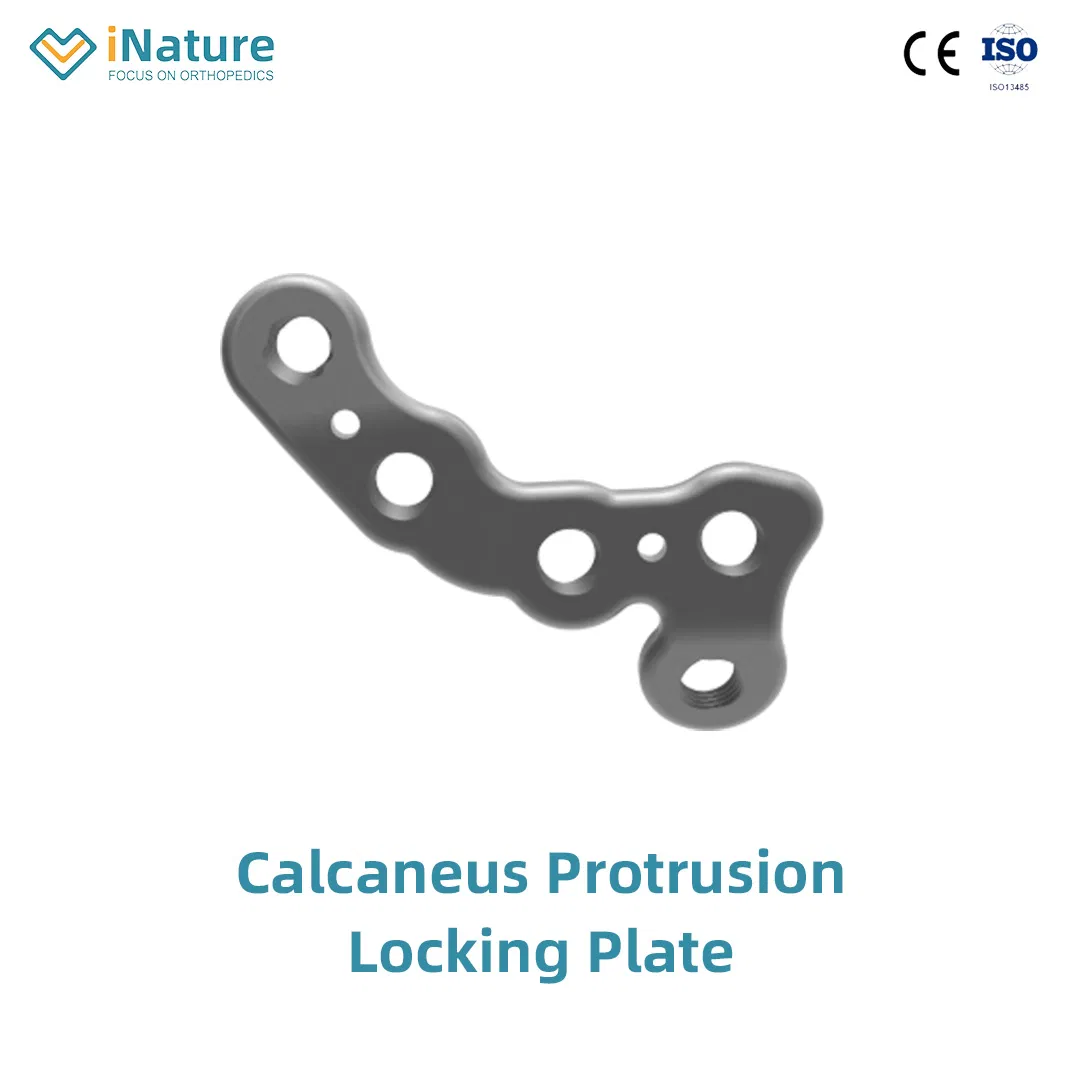

Calcaneus Protrusion Locking Plate HC 3.5 251518011 Small, L 10 1.8 42.8
251518012 Small, R 10 1.8 42.8
251518021 Large, L 10 1.8 47.8
251518022 Large, R 10 1.8 47.8
Calcaneal Locking Plate IV HC 3.5 251515011 15 Holes, L (L=64) / 2 64.3
251515012 15 Holes, R (L=64) / 2 64.3
251515021 15 Holes, L (L=69) / 2 69.3
251515022 15 Holes, R (L=69) / 2 69.3
251515031 15 Holes, L (L=76) / 2 76.3
251515032 15 Holes, R (L=76) / 2 76.3

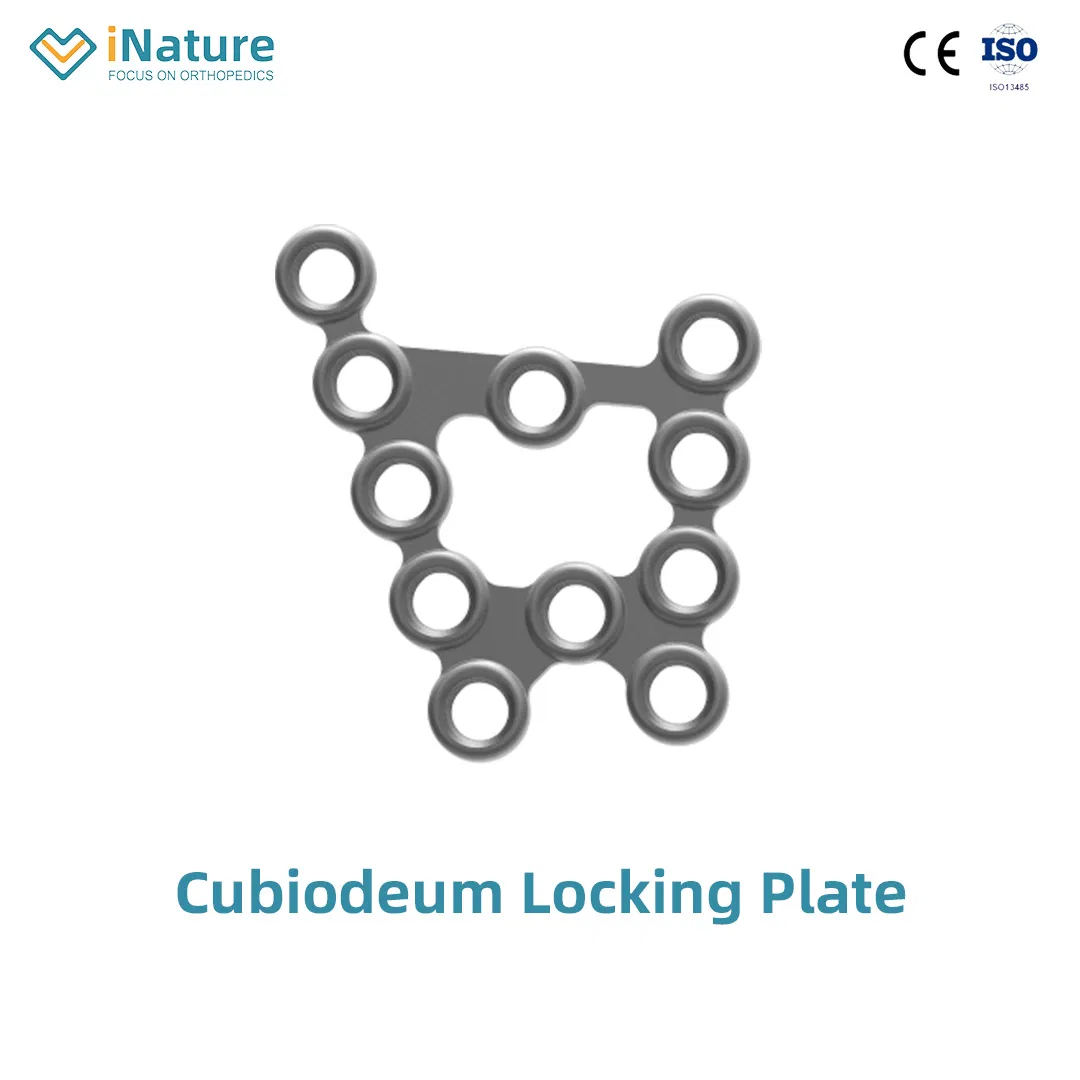

Cubiodeum Locking Plate HC 2.4/2.7 251519111 11 Holes, L/R / 1.5 /
Navicular Locking Plate HC 2.4/2.7 251520110 11 Holes 5 1.5 57
Talus Neck Locking Plate HC 2.4/2.7 251521060 6 Holes 11 1.5 38.4
X-Type Locking Plate HC 2.4/2.7 251522010 4 Holes (22*14) 14 1.5 22
251522020 4 Holes (24*18) 18 1.5 24
251522030 4 Holes (30*18) 20 1.5 30
251522040 4 Holes (30*22) 20 2.5 36

*All prices are for reference only. Exact price will be based on the latest quotation.

Calcaneal Plate View 1
Calcaneal Plate View 2
Calcaneal Plate View 3
Calcaneal Plate View 4
Calcaneal Plate View 5
?

Frequently Asked Questions

What material is used for the Calcaneal Locking Plates?
The plates are manufactured from high-quality Pure Titanium, ensuring excellent biocompatibility and strength for foot and ankle implants.
What is the warranty period for these medical instruments?
We provide a one-year warranty and offer online technical support as part of our after-sale service.
Are these products certified for international use?
Yes, our products carry CE and ISO 13485 certifications, meeting Class III medical instrument standards.
Do you offer OEM services for specific requirements?
Yes, OEM services are accepted to meet the specific needs of our clients and various surgical applications.
How are the plates packaged for transport?
The products are available in both Sterile and Non-Sterile packages, securely packed in cartons for safe transport.
What is the screw size compatible with the Calcaneal Locking Plate IV?
The Calcaneal Locking Plate IV is designed to be used with HC 3.5 size screws.
