CT Scan Machine Radiology Equipment Medical MRI CT Scanner Tomography System

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: Digital Imaging System

Product Description

Basic Specifications
Model NO.
HE-Q580
Certification
CE, ISO13485, SGS
Group
All
Transport Package
Wooden Case
Production Capacity
500 set/Year
Product Description

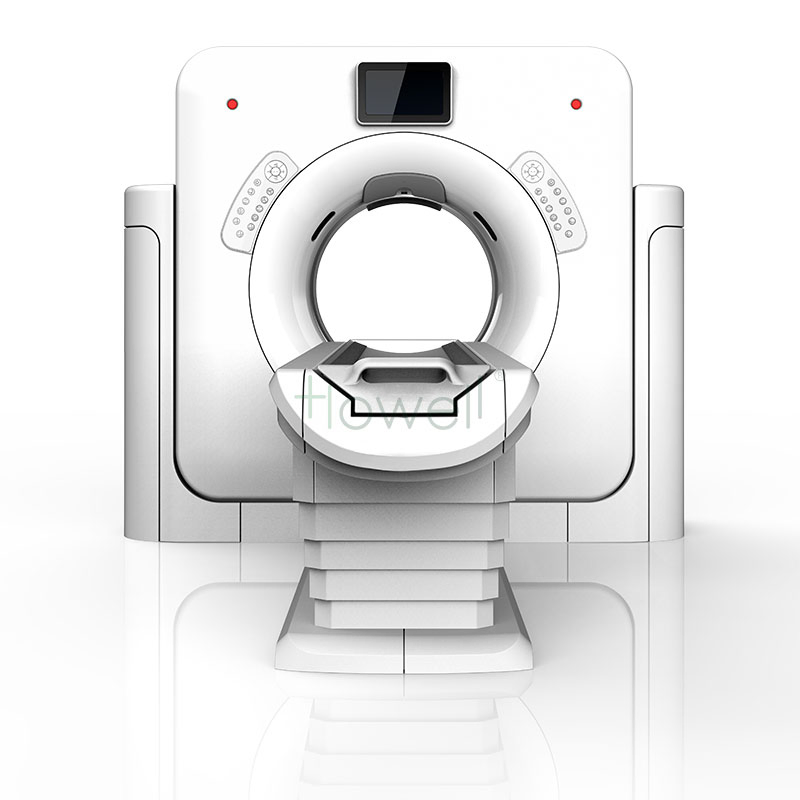

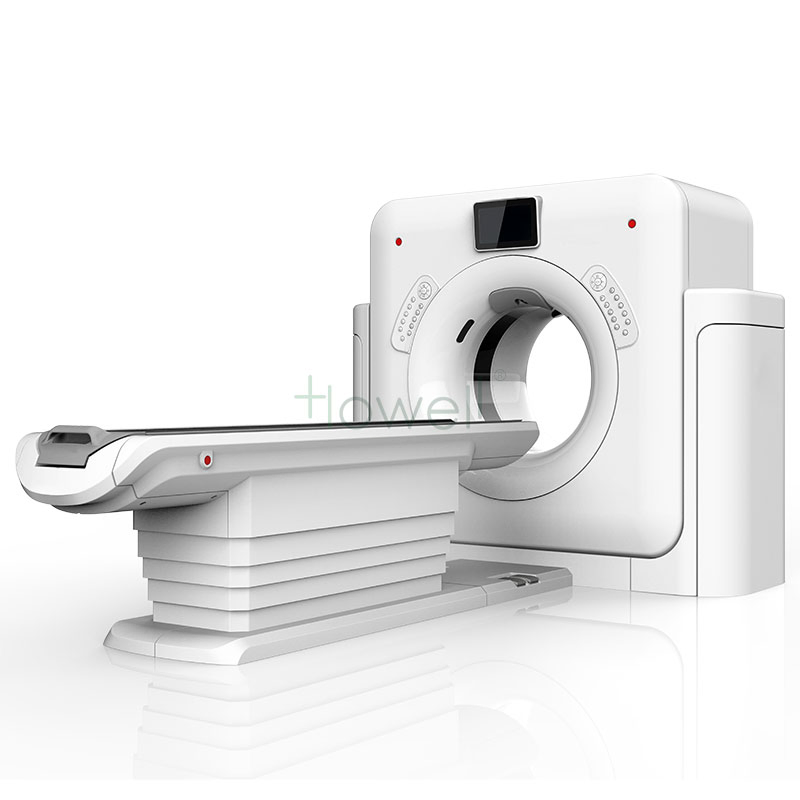

HE-Q580 Computed Tomography System
HE-Q580 Computed Tomography System
More Accurate Breast Screening
1024 × 1024 reconstruction matrix and scanning with submillimeter slices for low-dose screening of novel coronavirus, pneumonia, lung cancer and other intrathoracic diseases at an early stage; high-resolution display of early-stage changes in lung markings, and 0.5-second high-speed scanning to obtain high-quality images of patients receiving treatment in the middle stage of pneumonia, with respiratory motion artifacts minimized; AI-powered recognition of minimal change diseases (MCDs), analysis of morphological properties of lesions, and high-sensitivity detection of diseases to assist in accurate clinical diagnosis.

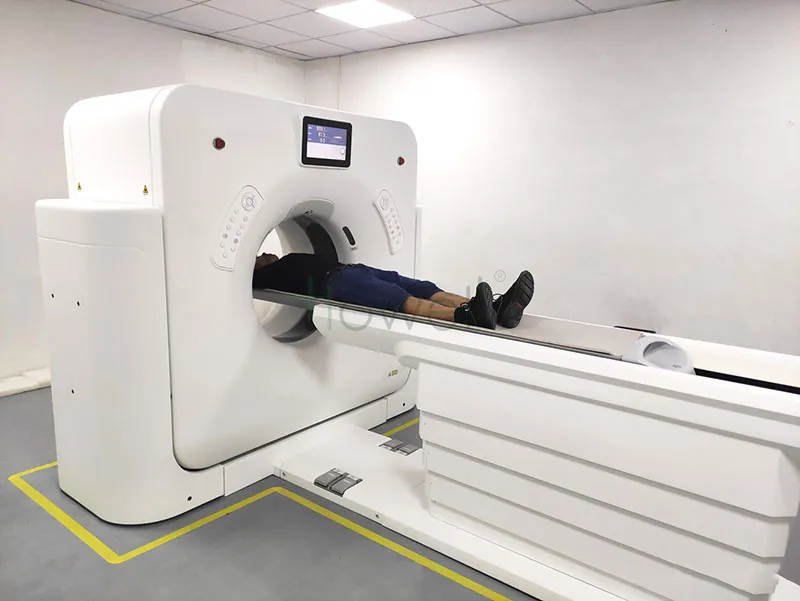

Larger Examination Space
760 mm large-aperture geometric design provides a comfortable examination space that combines multiple functions. It allows continuous scanning with less motion artifacts and a higher signal-to-noise ratio. The patient table features a load carrying capacity of 250 Kg and positional accuracy of 0.01 mm. The wider operating field of vision enables multi-purpose operations including simulated positioning for clinical radiotherapy, non-vascular intervention, and CT biopsy localization.
Higher Resolution & Smarter Technology
Creative and unique Hi-Q iterative algorithm empowers low-dose scanning and reconstruction of high-resolution and high-quality images. Intelligent mA (auto-mA) adjustment technology recognizes patients' anatomy and histology data to develop the optimal scanning protocol, reducing radiation dose while maintaining image quality.
Intelligent Software Suite
Intelligent CT pulmonary nodule analysis
CT colon analysis
CT lung analysis
CT perfusion analysis
Virtual endoscopy
One-button table removal
One-button bone removal
Tissue extraction and analysis software
Brand-new Integrated Imaging Chain
5.3MHU large heat-capacity tube is highly stable and capable of continuous scanning for examinations of large-area and multi-phase angiography. 0.5-second tube rotation speed reduces breath holding time in abdominal examinations and improves the signal-to-noise ratio of images.

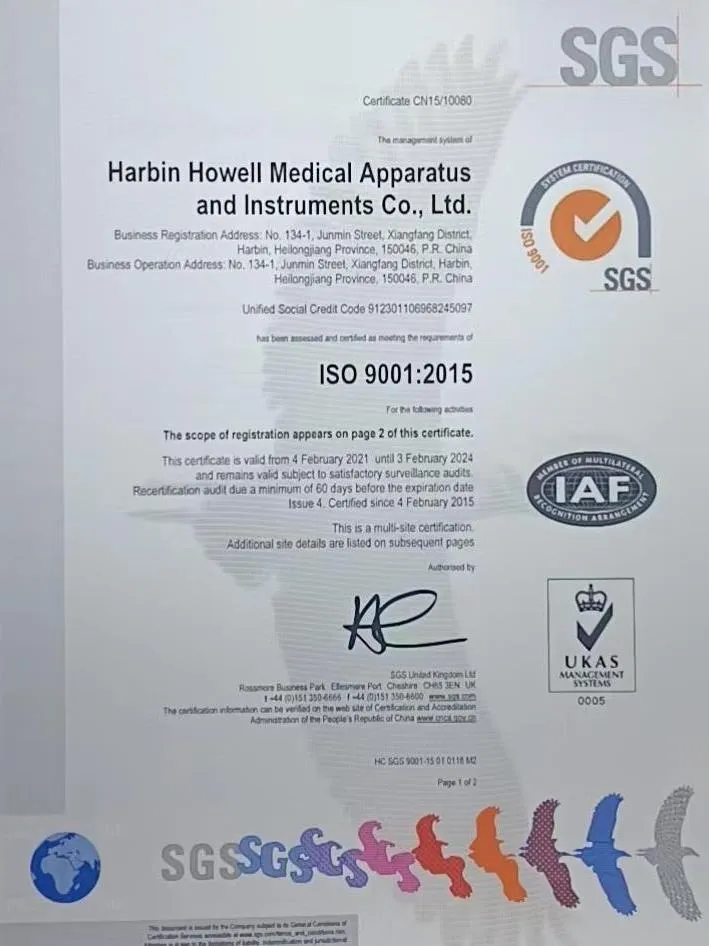

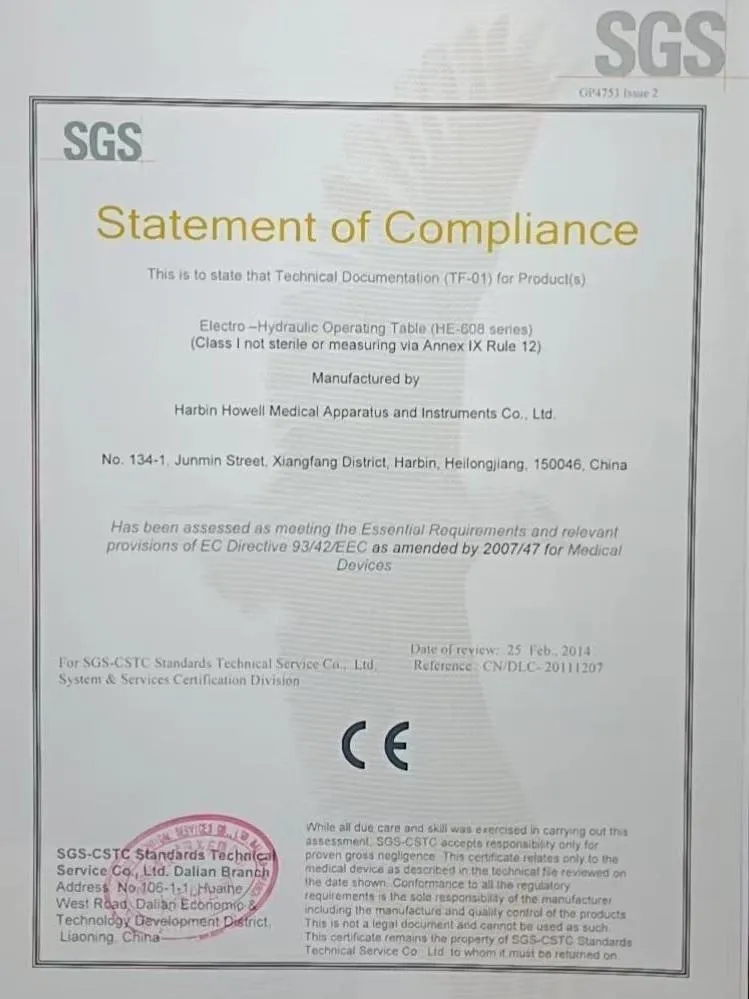

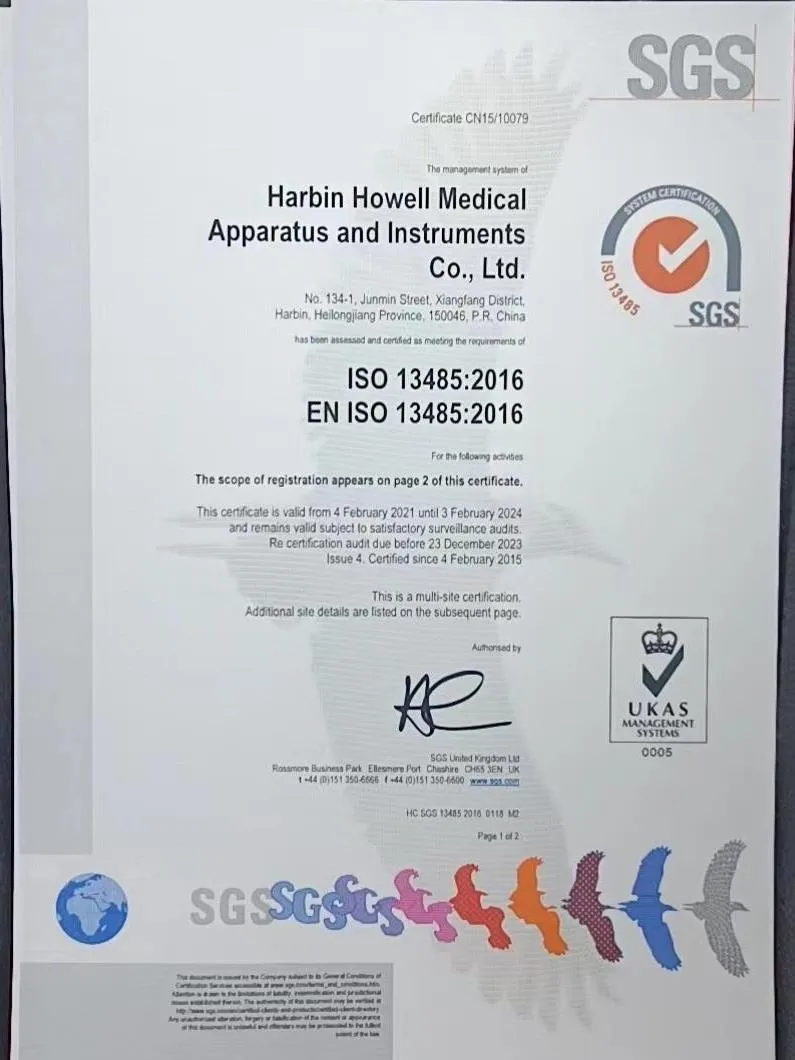

Certifications
System Overview
System Overview Map
Frequently Asked Questions
What is the aperture size of the HE-Q580 CT system?
The system features a 760 mm large-aperture design, providing more space for patient comfort and enabling multi-purpose clinical operations like radiotherapy positioning.
What is the scanning speed of this equipment?
It offers a 0.5-second high-speed scanning capability, which is essential for minimizing respiratory motion artifacts and improving image quality.
What is the weight capacity of the patient table?
The patient table is designed to carry a load of up to 250 Kg with a high positional accuracy of 0.01 mm.
Does the system include AI diagnostic support?
Yes, it features AI-powered recognition for minimal change diseases (MCDs) and intelligent analysis of pulmonary nodules, lung, and colon data.
How does the system manage radiation dose?
The HE-Q580 uses Intelligent mA (auto-mA) adjustment technology and the Hi-Q iterative algorithm to optimize the scanning protocol and reduce dose while maintaining high-resolution images.
What kind of X-ray tube does it use?
The system is equipped with a 5.3MHU large heat-capacity tube, which is highly stable for continuous scanning and multi-phase angiography.
