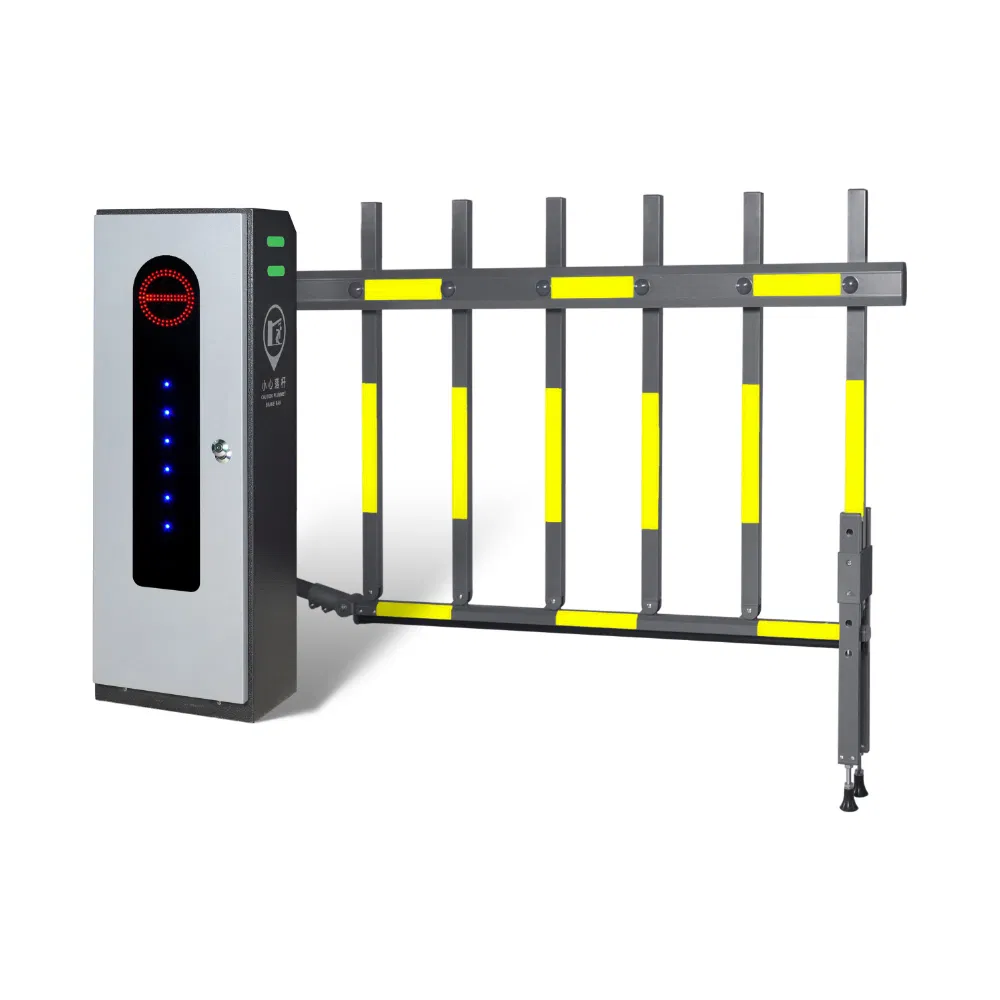

RFID Fast Speed Electronic Barrier Parking System
RFID Fast Speed Electronic Barrier Parking System
RFID Fast Speed Electronic Barrier Parking System
RFID Fast Speed Electronic Barrier Parking System
RFID Fast Speed Electronic Barrier Parking System
1 / 5
RFID Fast Speed Electronic Barrier Parking System
RFID Fast Speed Electronic Barrier Parking System
RFID Fast Speed Electronic Barrier Parking System
RFID Fast Speed Electronic Barrier Parking System
RFID Fast Speed Electronic Barrier Parking System

RFID Fast Speed Electronic Barrier Parking System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
AKD117
Position
Vehicle Fence
Material
Aluminium
Function
Separation, Obstruction, Warning, Beautiful
Upright Post
1035mm
Post Fixation
Expansion Bolts
Transport Package
Carton
Specification
355*280*1050mm
Origin
China
Production Capacity
30000 PCS Per Month
🚀

Product Description

Automatic LED Barrier Gate AKD117

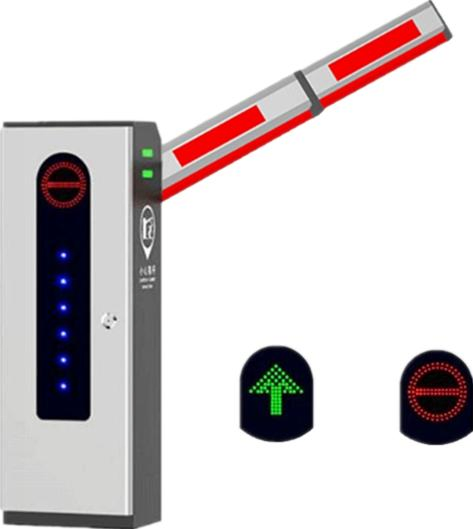

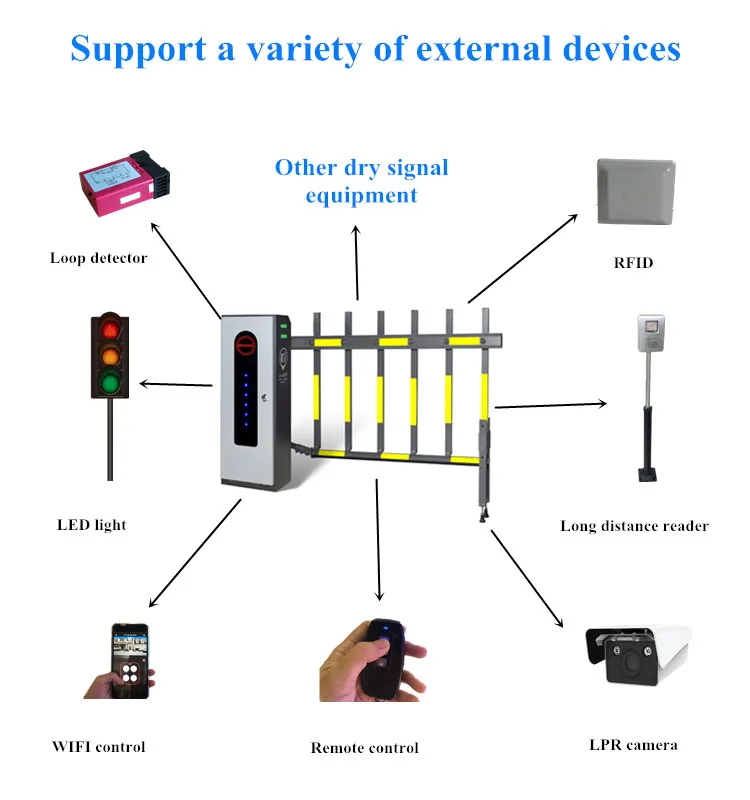

This advanced LED barrier gate supports a wide variety of external devices. The integrated LED light system provides clear visual signals: green when the barrier opens and red when it closes. For enhanced visibility, an optional LED lamp band can be added under the arm.

Automatic LED barrier gate
  • ✔
    Flexible Arm Length: Optional lengths available from 1m to 6m.
  • ✔

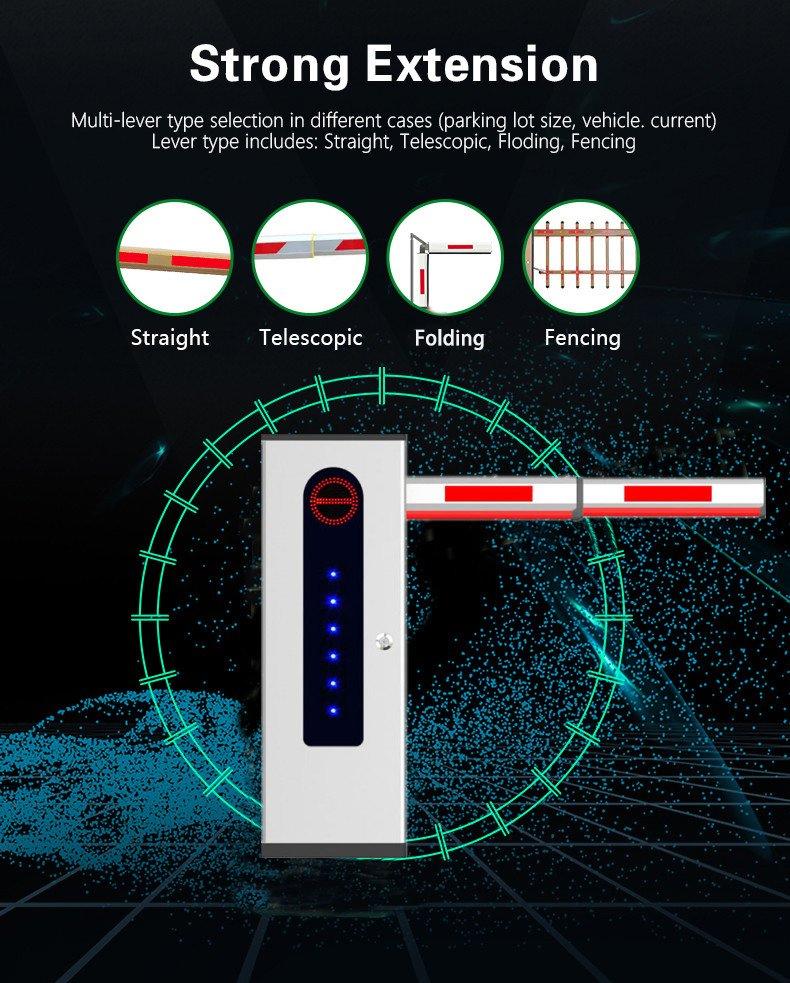

    Multiple Arm Types: Choose from straight, folding, retractable, or fence arms.
  • ✔

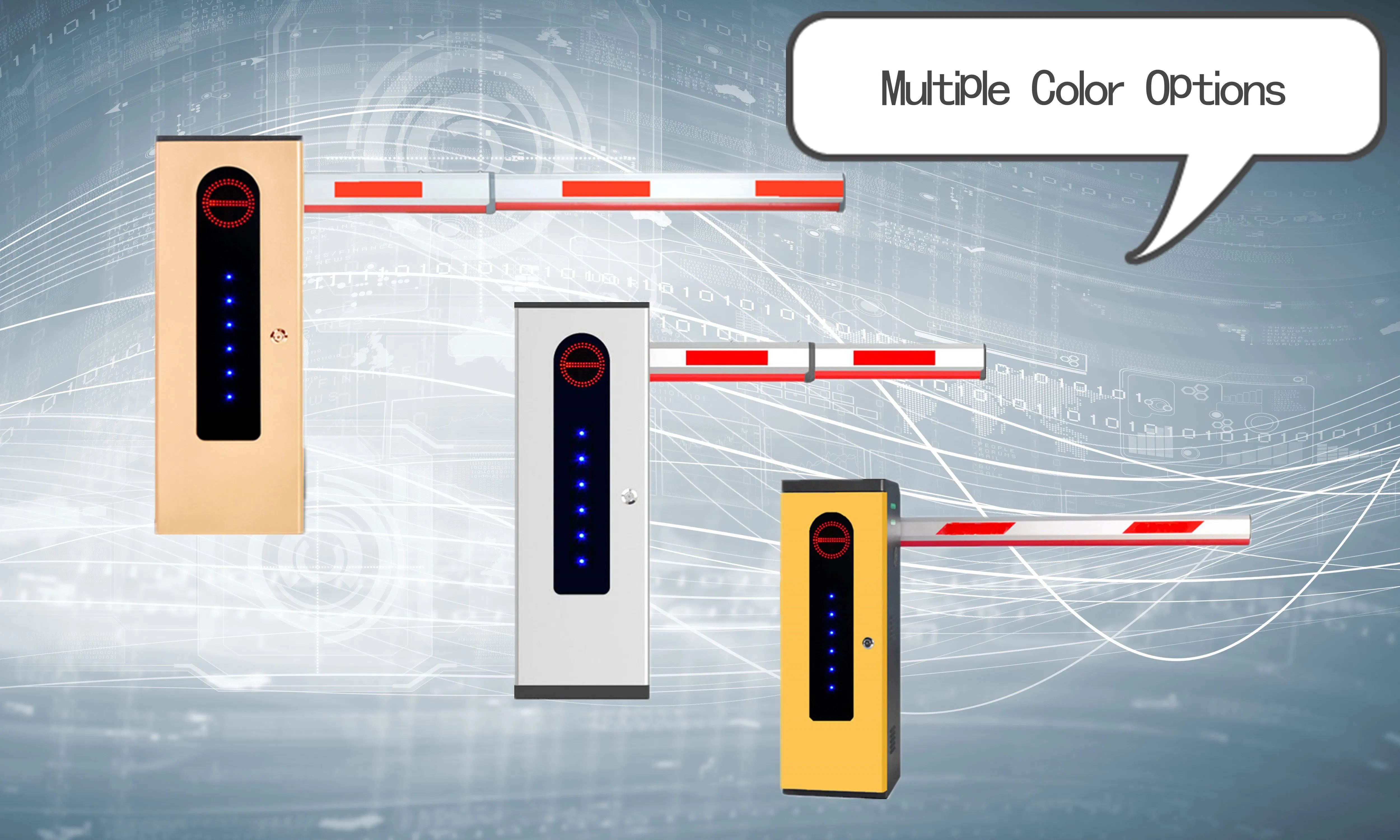

    Cabinet Colors: Available in Gray, Yellow, and Champagne finishes.
⚙️

Technical Parameters

Voltage220V/110V +-10%
Frequency50HZ
Motor Power Consumption60W
Housing Dimension355(W) * 280(D) * 1050(H) mm
Weight (Excluding Boom)50kgs
Drive SystemTorque motor
Remote Control Distance≤40m
⭐

Key Features

01
High-Efficiency Motor: 60W turbine worm transmission motor with an integrated fan to prevent overheating. Designed for 24-hour continuous operation with low noise and self-locking capabilities.
02
Dual Spring System: Utilizes two high-durability springs to prevent fractures and ensure smooth movement.
03
Integrative Machine Core: All parts are precision-molded for superior stability and a longer working life.
04
Accurate Link Mechanism: Reduces arm shake and motor load, ensuring stable movement and extending the equipment's lifespan.
📏

Boom Design & Types

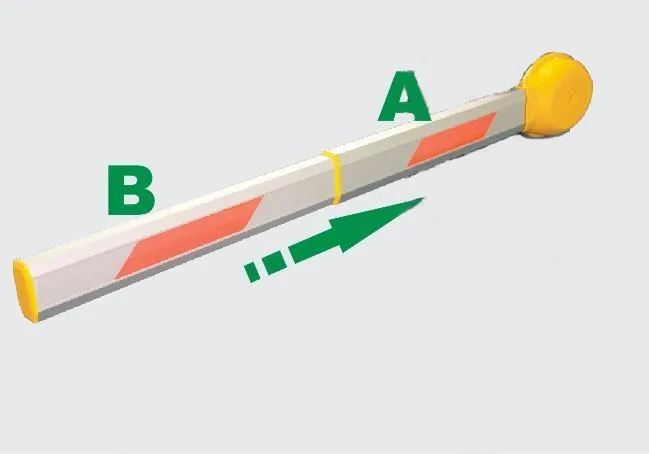

Our innovative Master/Slave boom design (A+B) allows for easier transportation. For example, a 6m boom can be configured as 4m+2m or 3m+3m, with part B contracting inside part A.

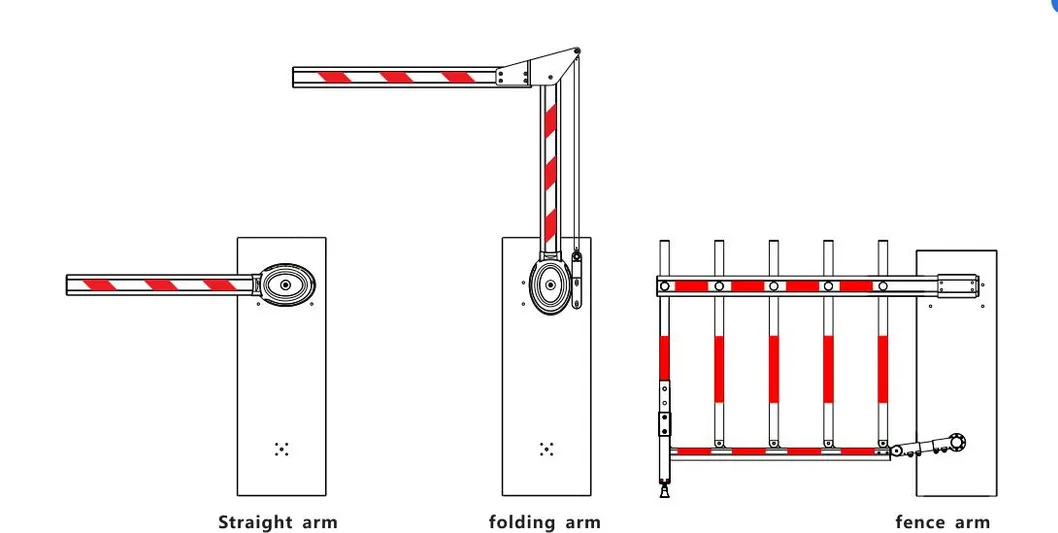

Boom types
Boom connection

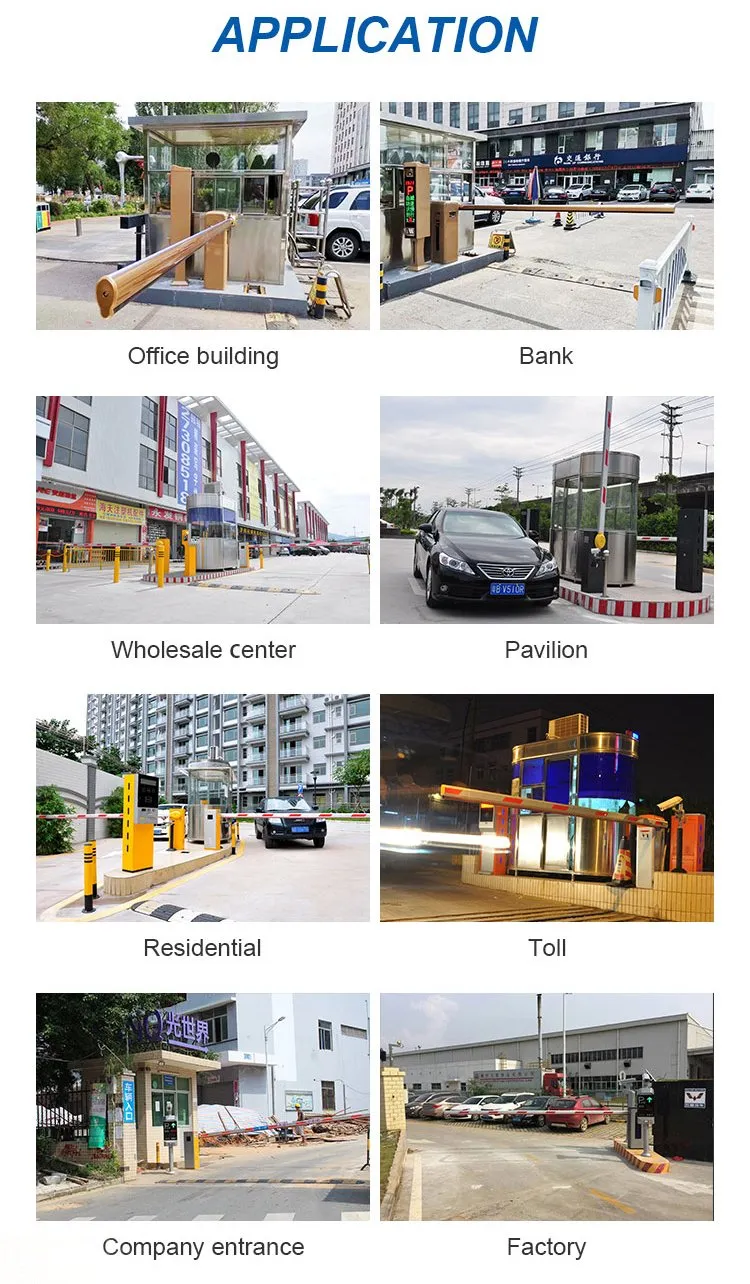

Boom dimensions
Production and Quality
❓

Frequently Asked Questions

What is the main advantage of the AKD117 motor?
It uses a 60W turbine worm transmission motor with a cooling fan, allowing for 24/7 continuous operation without overheating.
How does the LED indicator system work?
The LED light turns green when the barrier is open and red when it is closed for maximum safety and visibility.
What arm lengths and types are available?
Arm lengths range from 1m to 6m. Types include straight, folding, retractable, and fence arms.
Is the barrier gate weather-resistant?
Yes, the housing is made of high-quality aluminium and designed for outdoor vehicle fence positions.
What is the maximum remote control range?
The barrier gate can be operated via remote control from a distance of up to 40 meters.
How is the 6m boom transported?
We use a master/slave design where the boom is split (e.g., 3m+3m) and one part fits inside the other for convenient shipping.
