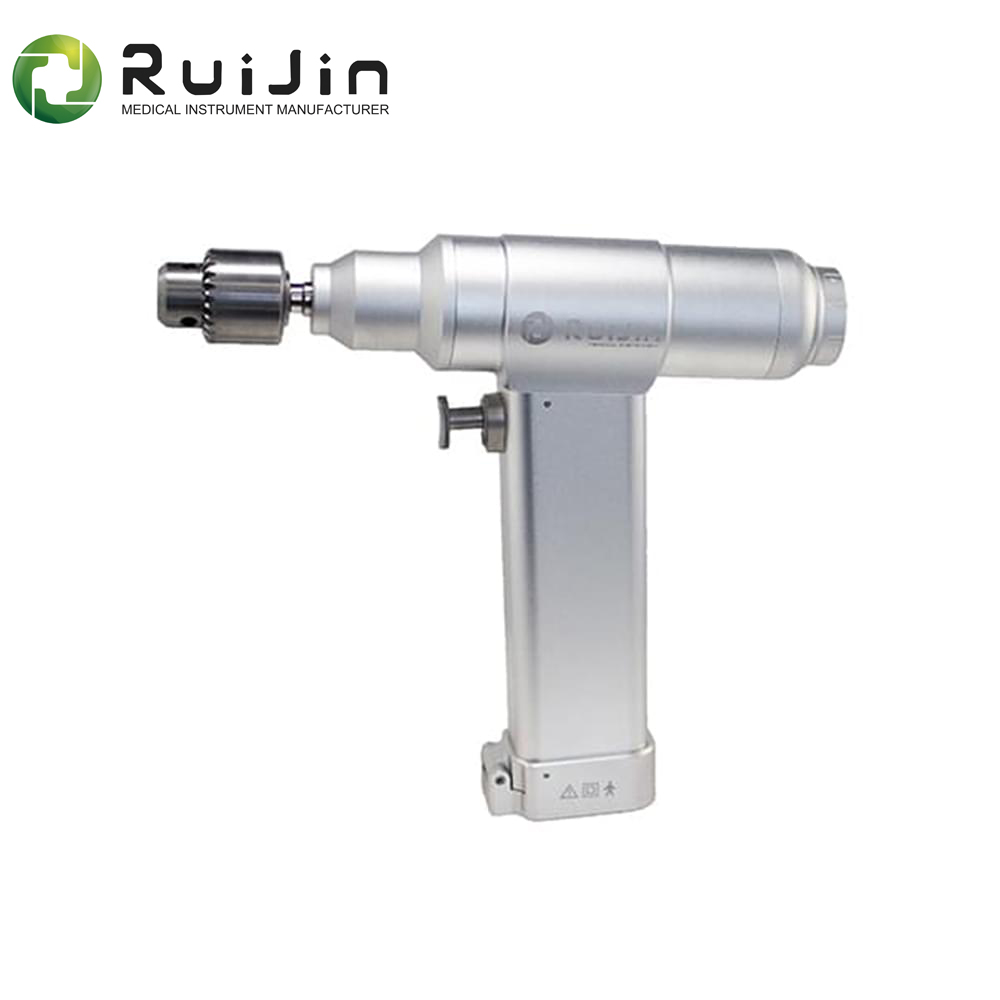

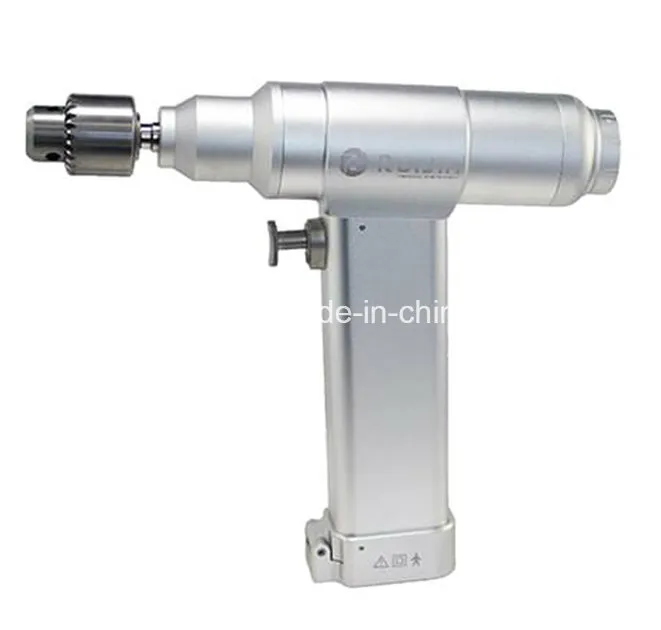

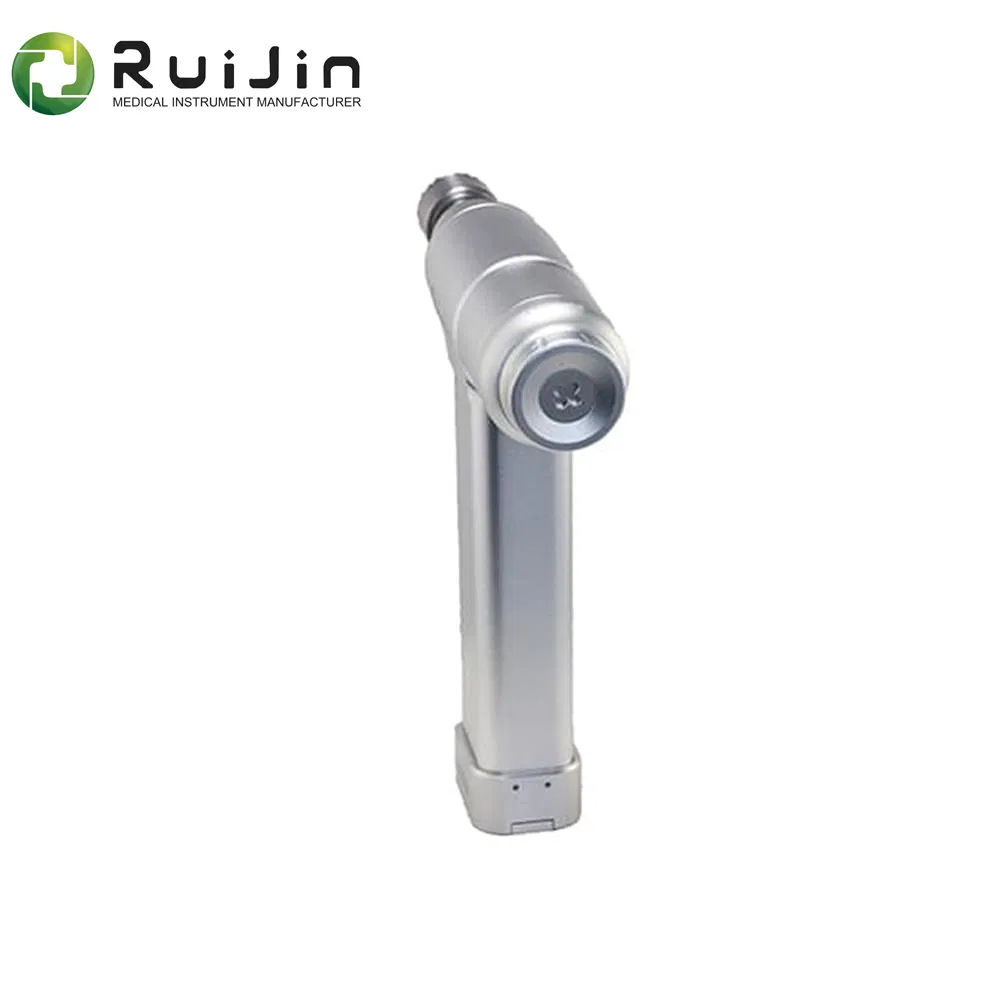

Medical Electric Equipment Power Drill Tools for Orthopedic Surgery

1 / 4

Medical Electric Equipment Power Drill Tools for Orthopedic Surgery

Customization:	Available
Type:	Surgical Drill
Application:	Orthopedic, Neurosurgery, Internal Fixation with Steel Plate

Send Inquiry

Product Description

Basic Specifications

Model NO.

ND-1001

Material

Stainless Steel

Feature

Reusable

Certification

CE, ISO13485

Aiguille Diameter

4.2mm

Drill Chuck Size

0.6mm--6mm / 0.6mm--8mm

Torque

7500g/Cm

Properties

Orthopedic Surgical Instruments

Production Capacity

100000 Sets/Year

HS Code

9018909000

Technical Parameters

Medical Electric Power Drill Tools for Orthopedic Surgery

Output Power	130W
Speed	0-13000 r.p.m
Noise	≤ 65 dB
Sterilization	≤ 135ºC
Operation Voltage	14.4V
Hand-piece Temperature Rise	≤ 25ºC
Main Material	Aluminum Alloy
Structure	Integrated
Net Weight	1.5KG
Battery Type	Ni-MH
Charger Input Voltage	AC 220V, 50Hz or 110V, 60Hz
Charging Time	2.5-3 Hours

Product Technical Merits

Autoclavable: Can be sterilized up to 135ºC.
Discretionary speed control to meet different surgery situations.
Strong power, low noise, and small vibration.
Convenient operation with ergonomic design.
Ni-MH battery without memory environment.
Concentric drilling with less than 0.05mm difference ensures precise performance.
Custom-made drilling speeds (1100 rpm, 1200rpm, 1350rpm, 1500rpm) available.

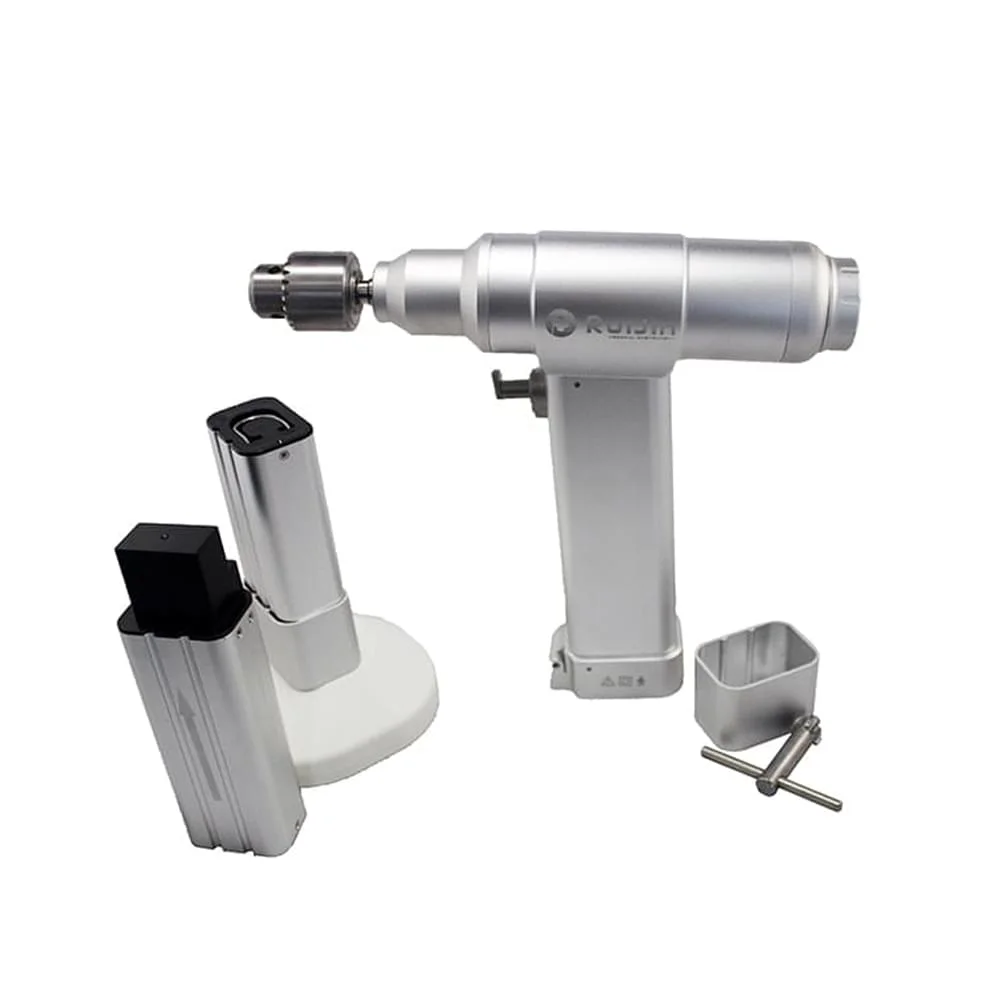

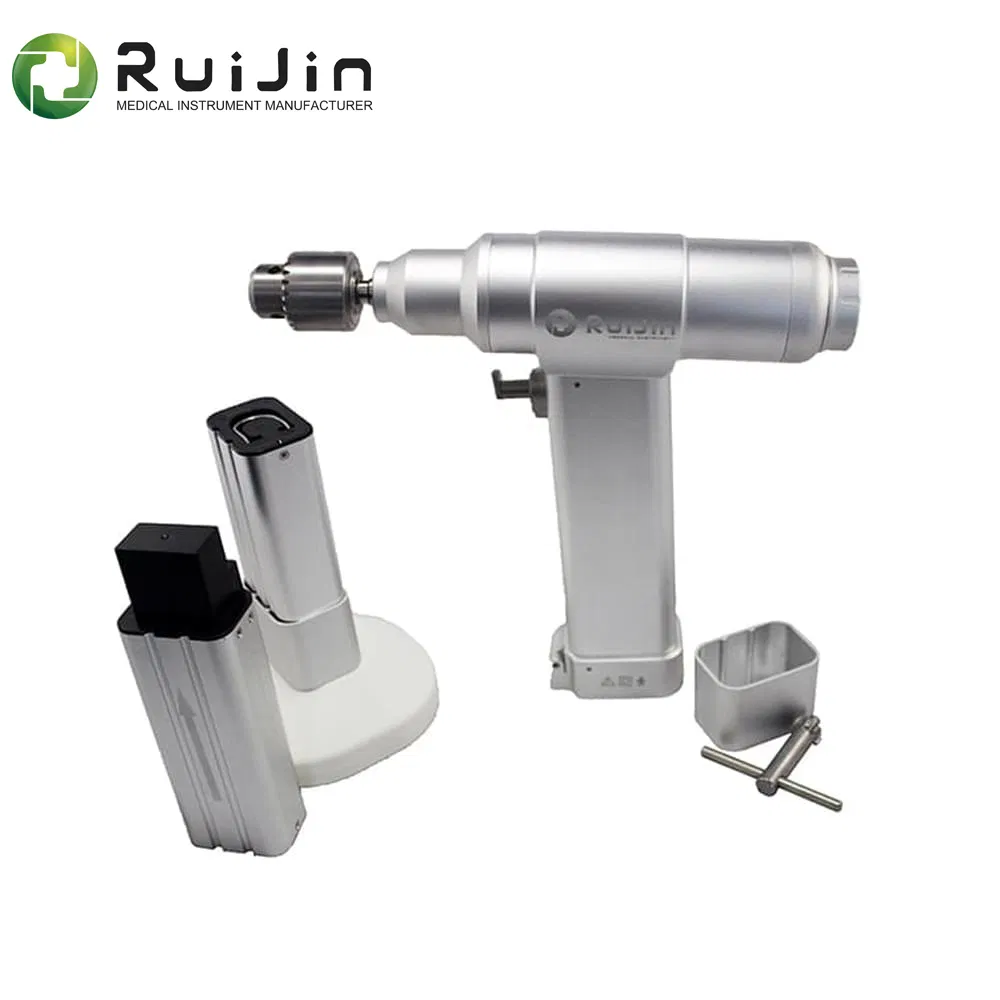

Product Display & Configuration

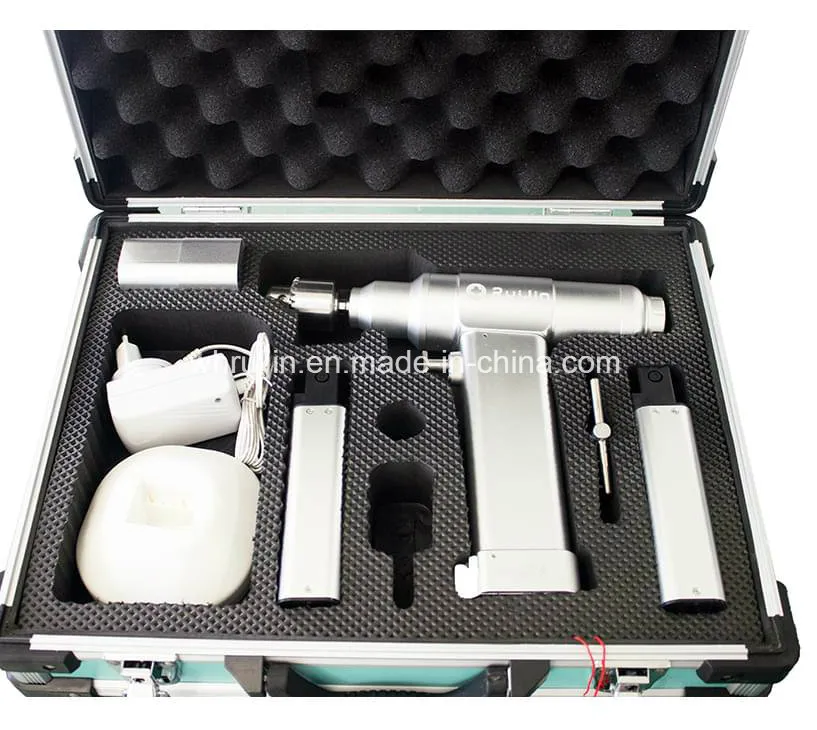

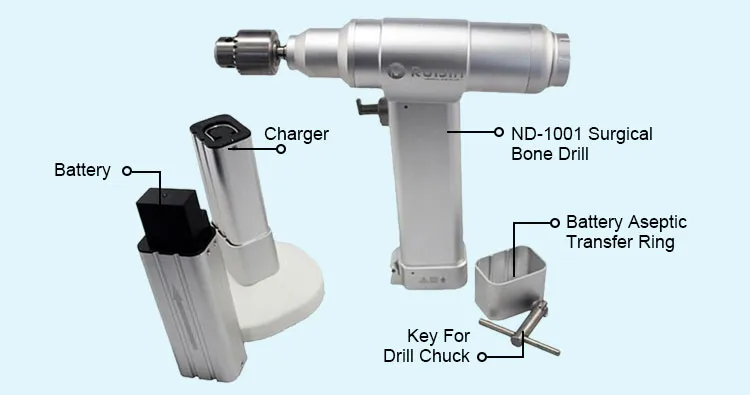

Standard Configuration:

Mainframe, Battery, Drill Chuck, Aluminum Alloy Outer Case, Sterilizing Channel, Battery Charger.

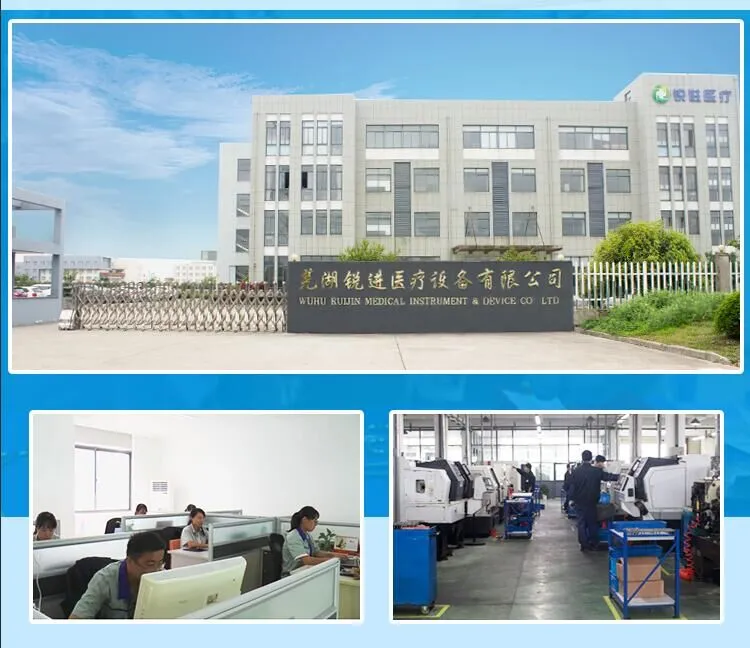

Manufacturer Profile

Established in 2007, we are a medical device manufacturer integrated with R&D, production and sales, focusing on medical drill series and micro medical electric drill series. Our main products include medical bone drills, multi-functional cannulated drills, oscillating saws, reciprocating saws, and medical electric plaster saws, which are used in Trauma Surgery, Thoracic Surgery, Joint Operation, and Veterinary Orthopedic Surgery.

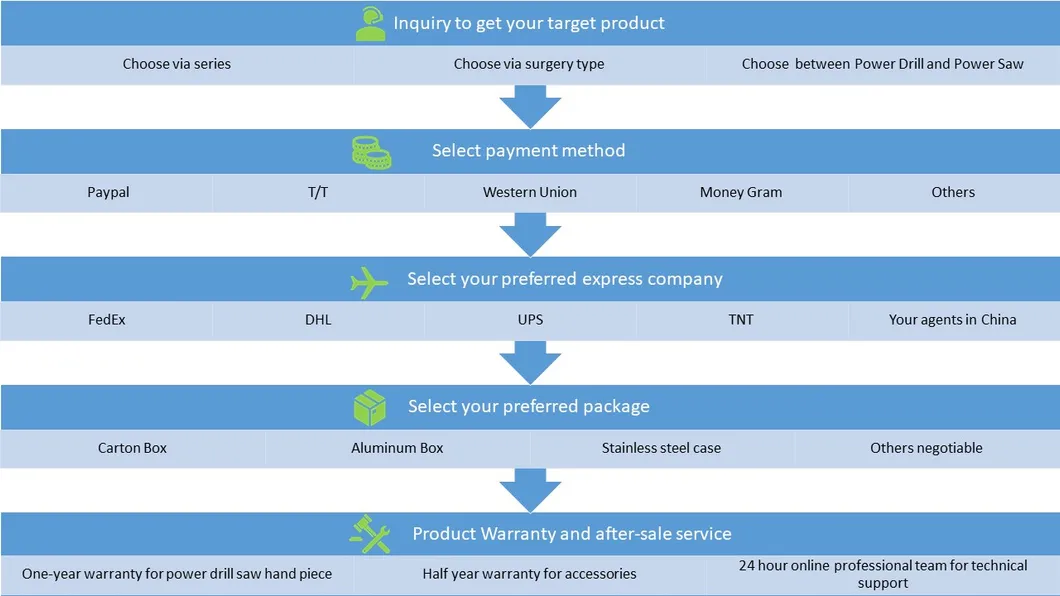

Logistics & Ordering

MOQ

1 piece

Payment

T/T in advance or Western Union

Delivery Time

Within 3 days after payment

Packing Size

Carton: 41cm x 32cm x 15cm

Attention & Notes

Professional Use	The device is forbidden to be demolished by non-professionals.
Power Source	Compatible with 110V/60Hz and 220V/50Hz.
Battery Care	Remove battery when not in use to avoid automatic discharge.
Sterilization	Battery cannot be disinfected. Handpiece sterilization must be < 135ºC.
Maintenance	Clean saw blades and drill bits with a purifier and keep dry after operation.

Frequently Asked Questions

What is the maximum sterilization temperature for this drill?

The mainframe and drill components can be sterilized at temperatures up to 135ºC. Please note the battery should not be sterilized.

How long does the battery last and what is the charging time?

The Ni-MH battery takes approximately 2.5 to 3 hours to fully charge, providing reliable power for orthopedic procedures.

Is the drilling speed adjustable?

Yes, the device features discretionary speed control ranging from 0 to 13,000 r.p.m to suit various surgical requirements.

What surgical procedures is this equipment suitable for?

It is ideal for Trauma Surgery, Thoracic Surgery, Joint Operations, and Veterinary Orthopedic Surgery.

What certifications does the product have?

The equipment is fully compliant with medical standards, holding both CE and ISO13485 certifications.

What is included in the standard shipping set?

One set typically includes the mainframe, one battery, one charger, a drill chuck, a sterilizing channel, and a protective aluminum alloy carrying case.
