Product Description

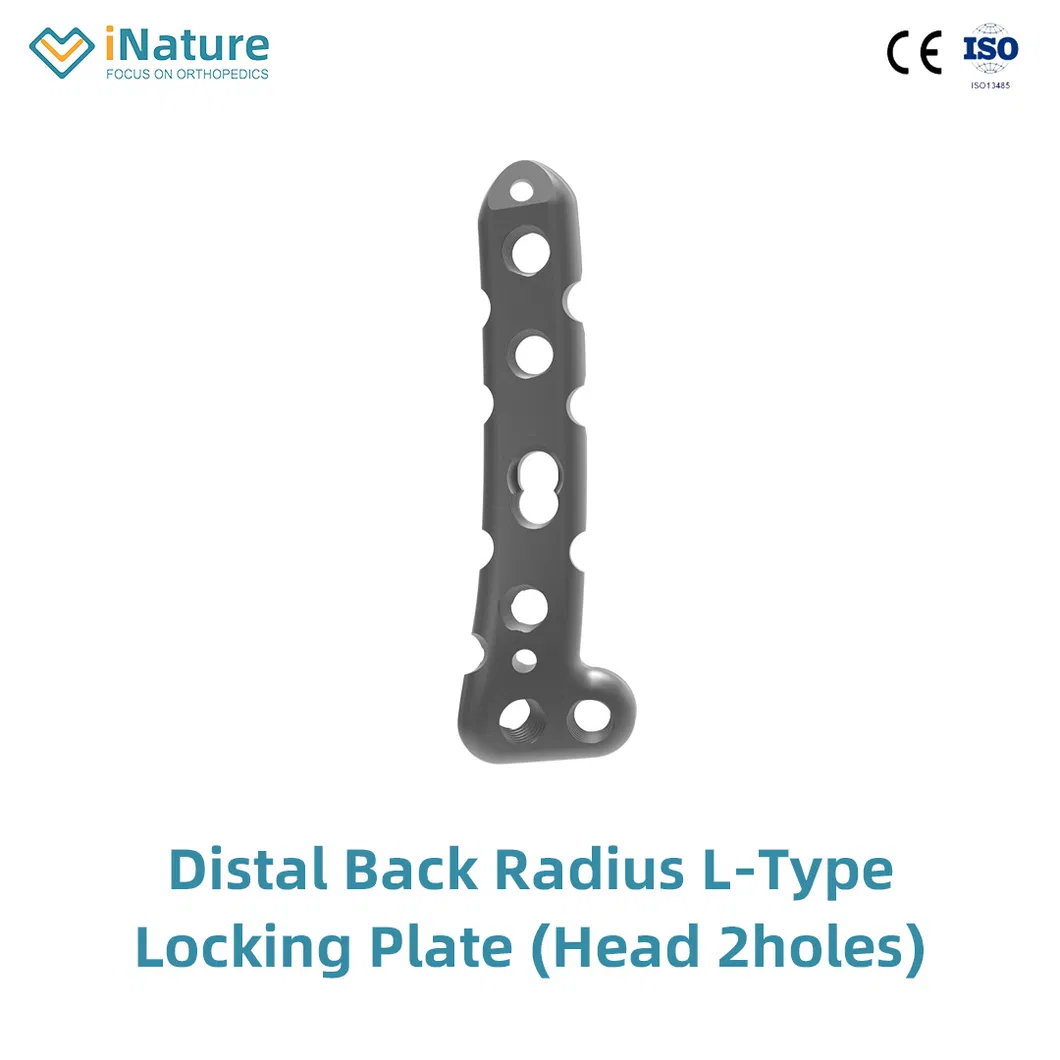

Distal Back Radius L-Type Locking Plate (Head 2 holes)
Code: 251704XXX | Width: 7mm | Thickness: 2.5mm | Material: TA3
Screw size: HC2.4/2.7, HA2.5/2.7
- Based on three column theory of distal radius
- Excellent anatomic pre-shaped design fits bone surface perfectly
- Double plates with angular fixation for reliable stability
- Optimized for fractures of distal radius with dorsal shift

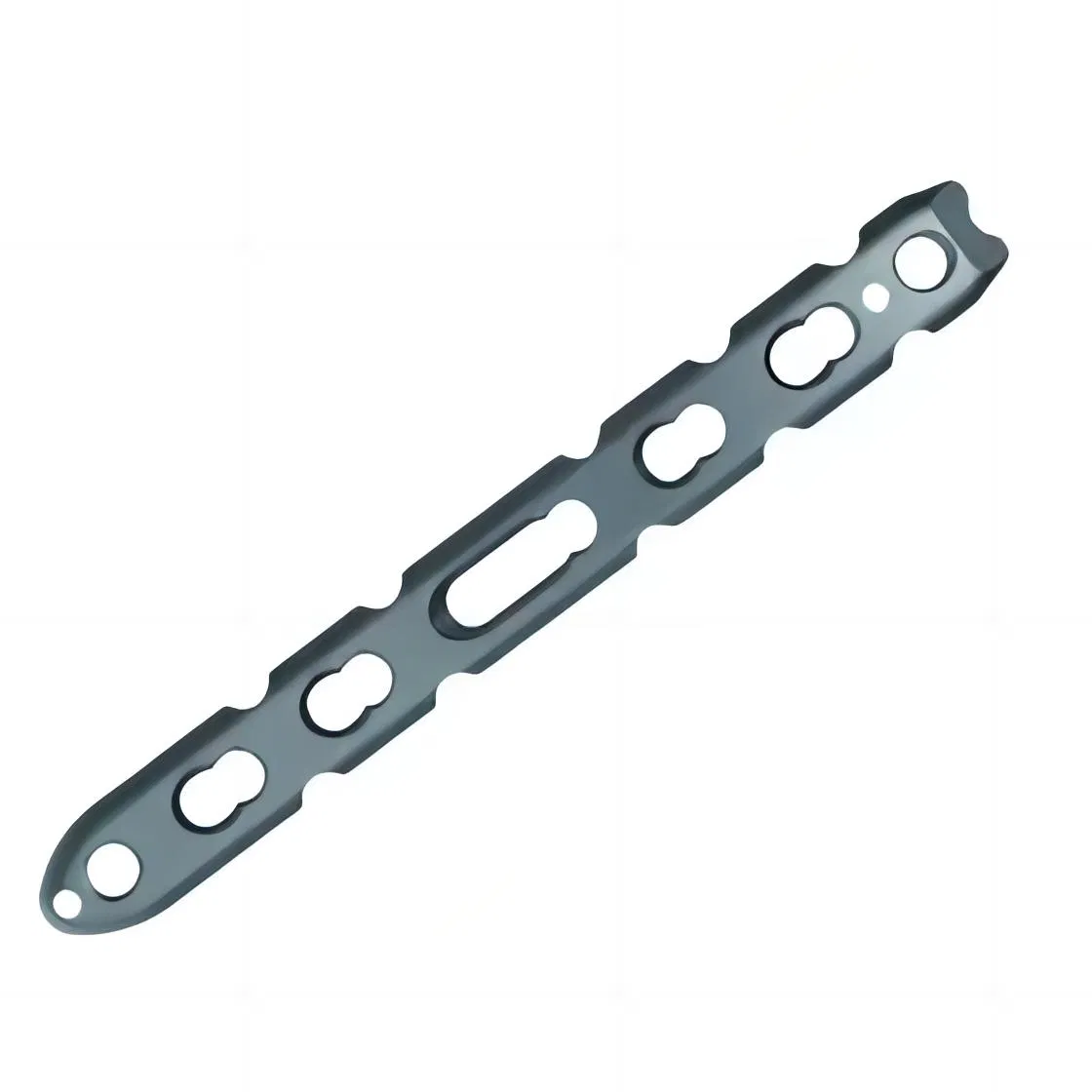

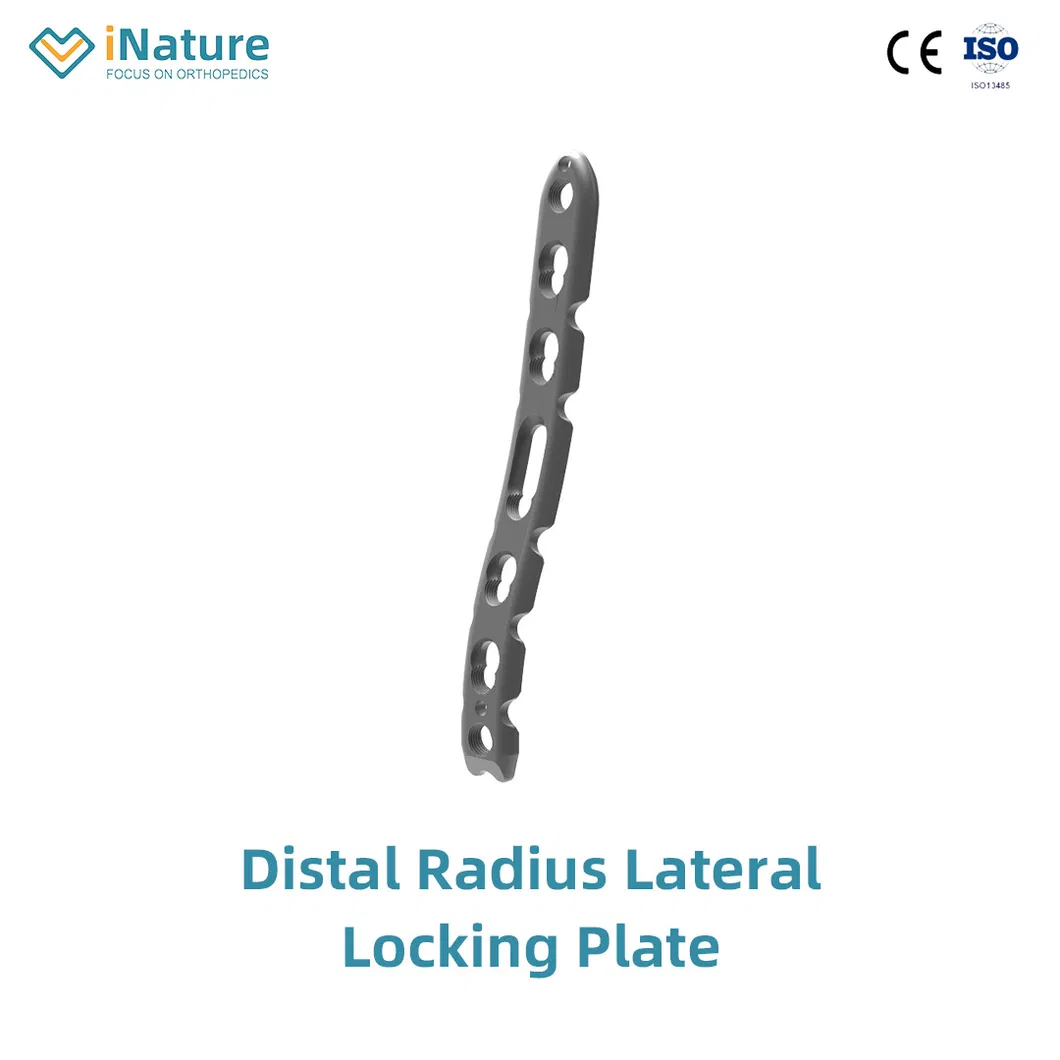

Distal Radius Lateral Locking Plate
Code: 251705XXX | Width: 7mm | Thickness: 1.6mm | Material: TA3
Screw Size: HC 2.4/2.7, HA 2.5/2.7
- Anatomic pre-shaped design for superior bone surface fit
- Reliable double plate angular fixation
- Ideal for distal radius fractures with dorsal shift

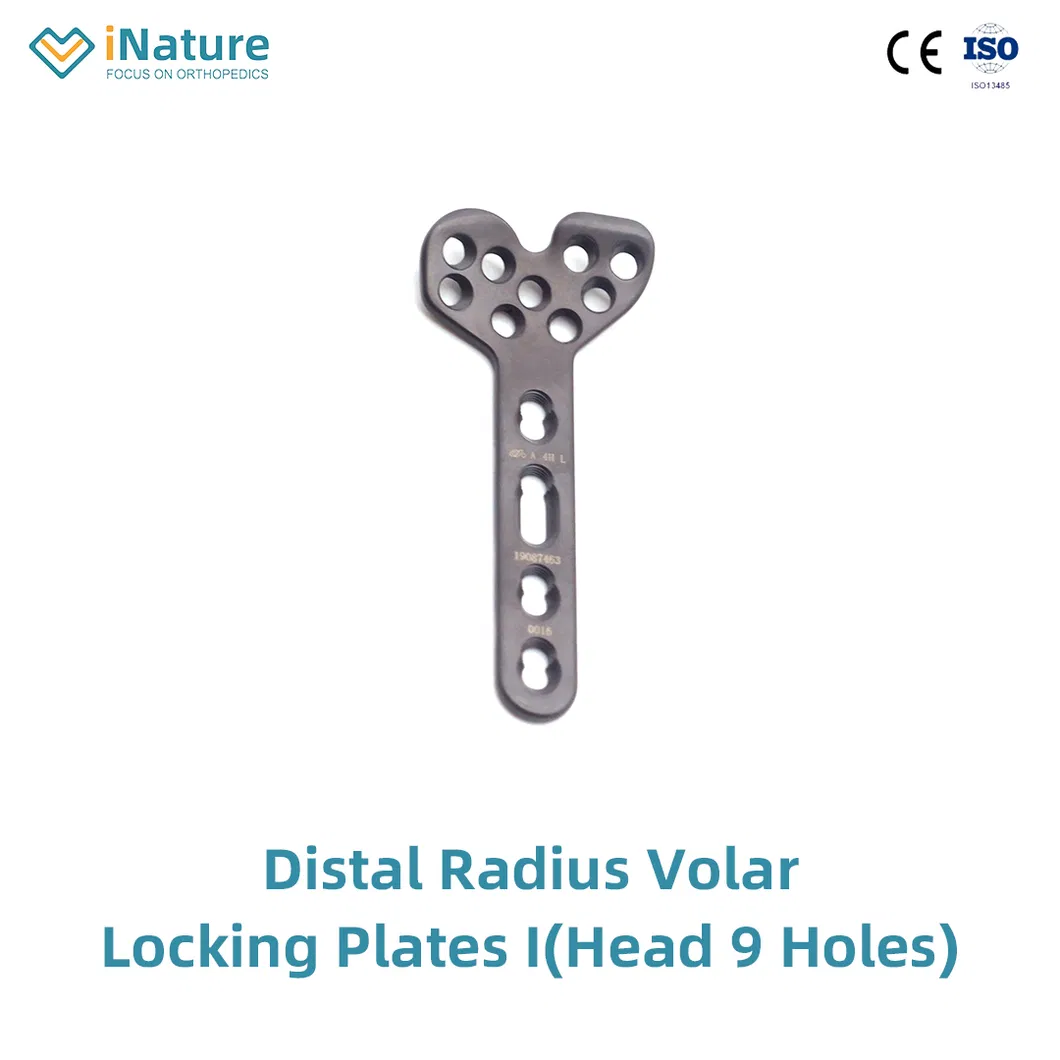

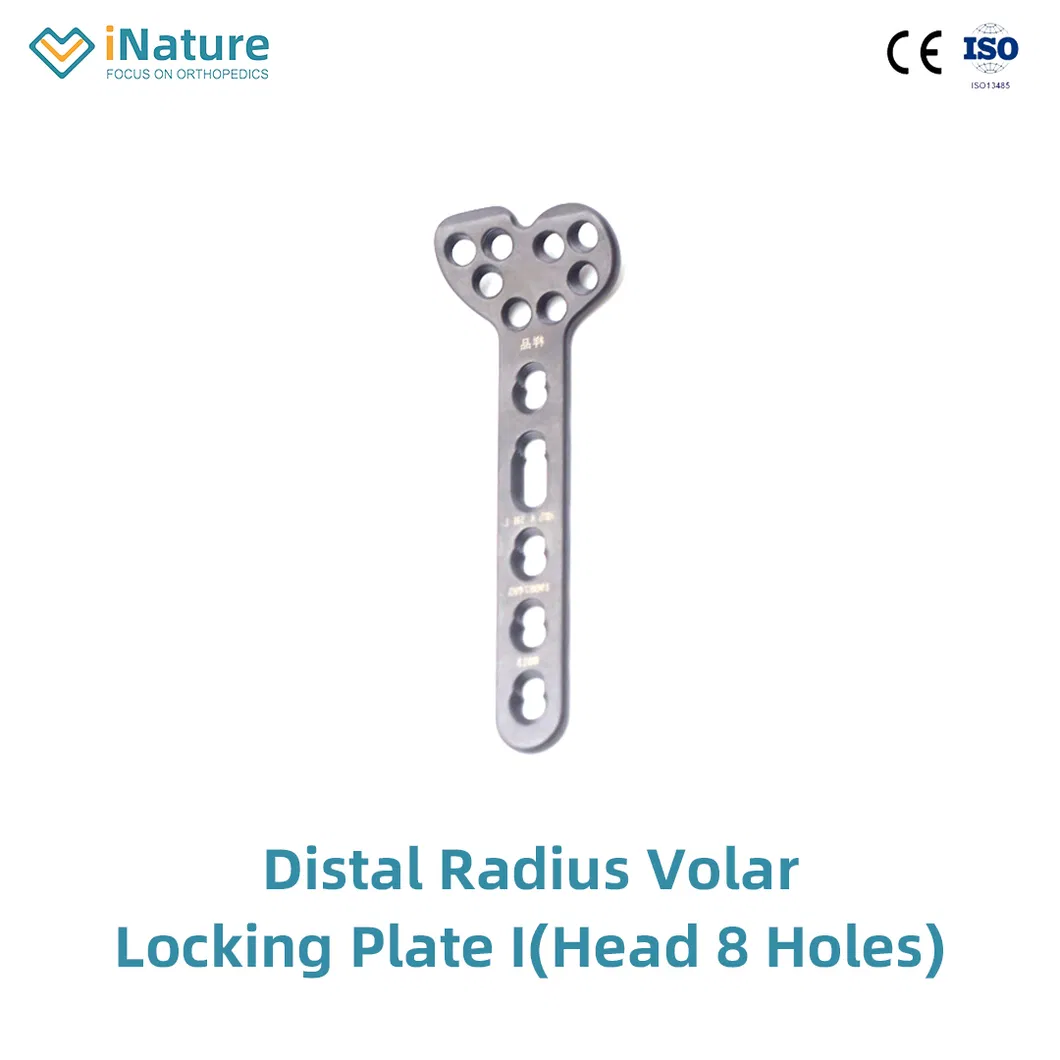

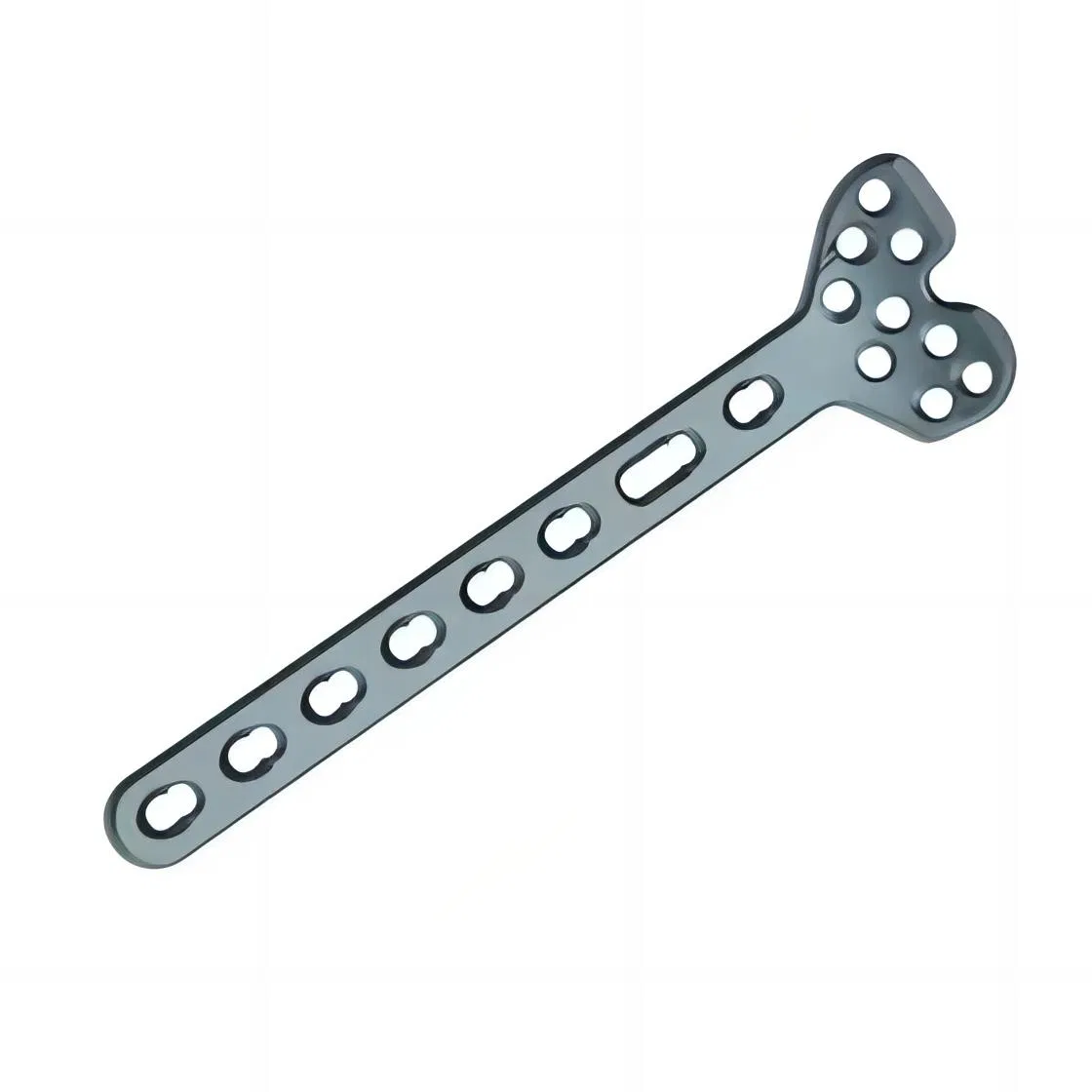

Distal Radius Volar Locking Plate I (Head 8/9 Holes)
Code: 251702XXX / 251701XXX | Width: 9mm | Thickness: 2mm | Material: TA3
- Distal end positioned closer to the joint surface
- Low profile design to reduce soft tissue irritation
- Proximal joint part with 9pcs locking screws for precise distribution
- Effectively supports ulnar/radius joint, lunate joint surface, and radius styloid
- Angular screw design for stable fixation in osteoporotic bone

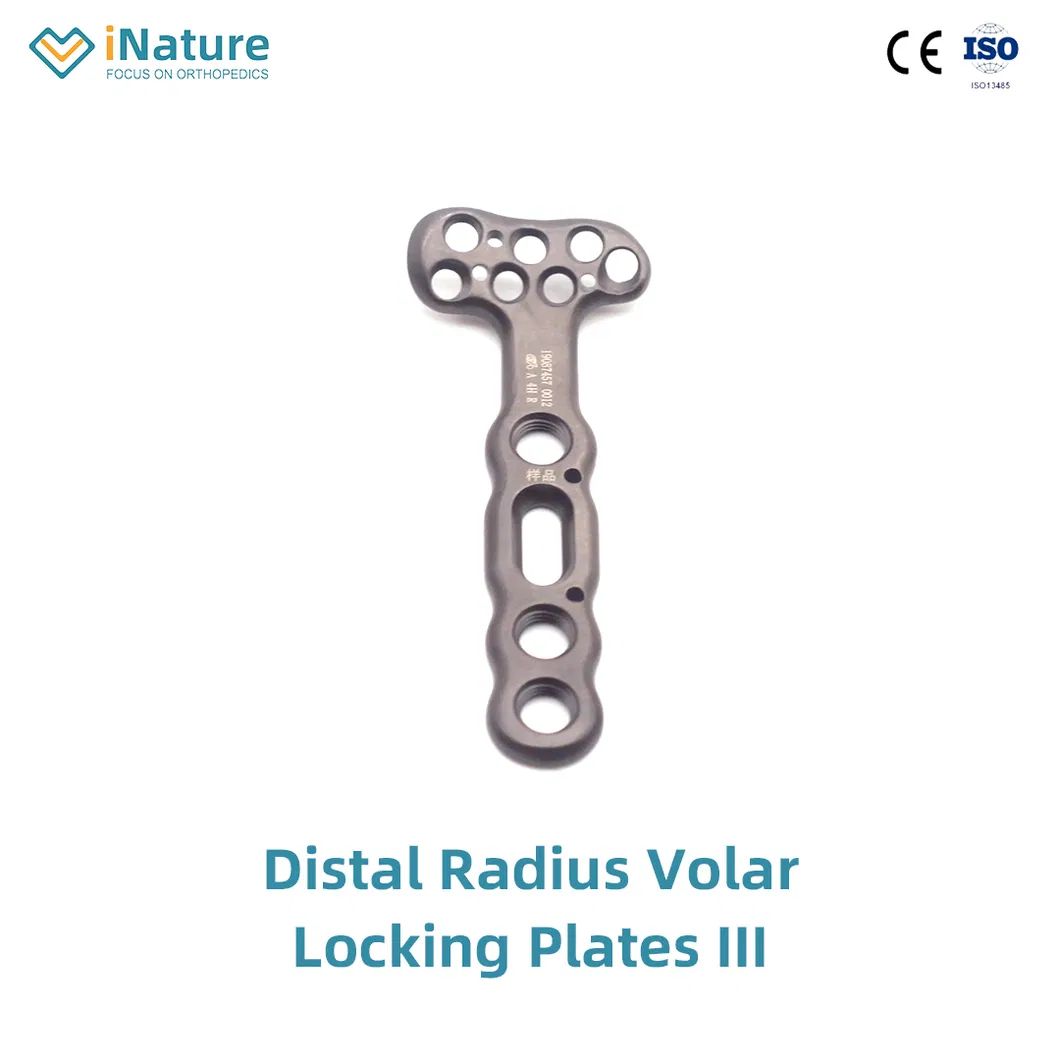

Distal Radius Volar Locking Plates III
Code: 251700 | Width: 11mm | Thickness: 2.5mm | Material: TA3
- Precise anatomic design fitting the watershed area tightly
- Double row screw design for proximal joint support
- Triangle structure provides exceptionally strong support
- Accurate fixation for palmar, dorsal joint surfaces, and radius styloid

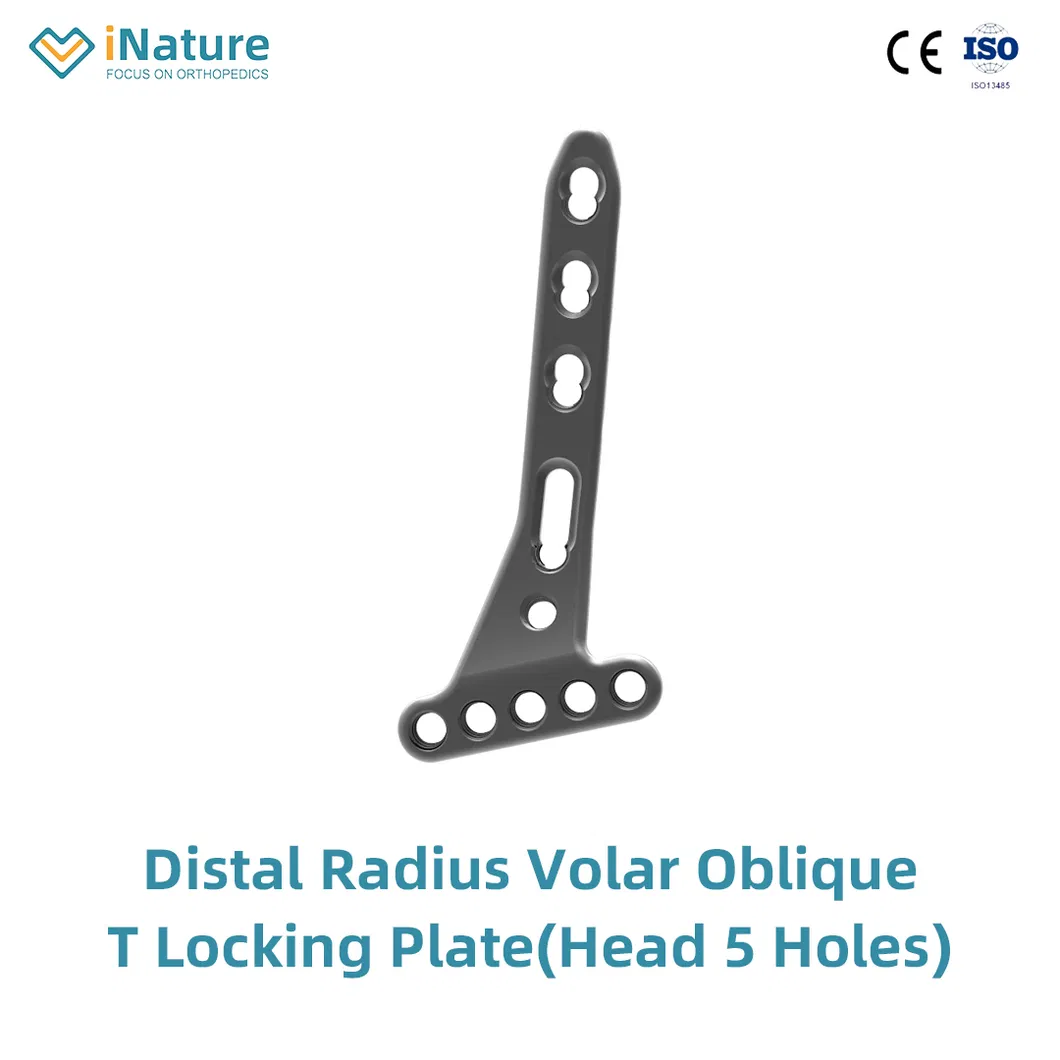

Distal Radius Volar Oblique T locking Plate (Head 5 Holes)
Code: 251703XXX | Width: 7.4mm | Thickness: 1.8mm | Material: TA3
- Excellent anatomic pre-shaped design for palmar joint surface
- Parallel placement of 5 distal screws for effective surface support
- Optimized for distal radius fractures with dorsal shift
Frequently Asked Questions
What materials are used for the Radius Locking Plates?
The plates are manufactured from high-quality Pure Titanium (TA3), ensuring excellent biocompatibility and strength for orthopedic implants.
Are these plates anatomically pre-shaped?
Yes, the system features an excellent anatomic pre-shaped design that is engineered to fit the bone surface closely, reducing the need for intraoperative bending.
What is the medical classification of these instruments?
These products are categorized as Class III medical instruments, suitable for high-risk implant procedures.
Which screw sizes are compatible with the system?
The system is compatible with various screw sizes including HC 2.4/2.7, HA 2.5/2.7, and for Volar Plates III, HC 3.5, HA 3.5, and HB 4.0.
What certifications do the products hold?
Our Radius Locking Plate System is fully certified with CE and ISO 13485 standards, meeting international quality requirements for medical devices.
What packaging options are available?
We offer both Sterile and Non-Sterile packaging options to meet different surgical and logistical requirements.
