Pre-Contoured Medial Tibia Plateau Locking Plate System for Knee Trauma Orthopedic Surgical Implants

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
Tibia Plateau Medial Locking Plate
Sterilization
Ethylene Oxide Sterilization
Guarantee Period
Two Years
Product Name
Titanium Plate
Fixation
Bone Fixation
Color
Gold, Blue, Green
Size
6-13 Holes
Material
Medical-Grade Titanium Alloy / Stainless Steel
Production Capacity
50000 Pieces / Year
HS Code
9021100000

Product Description

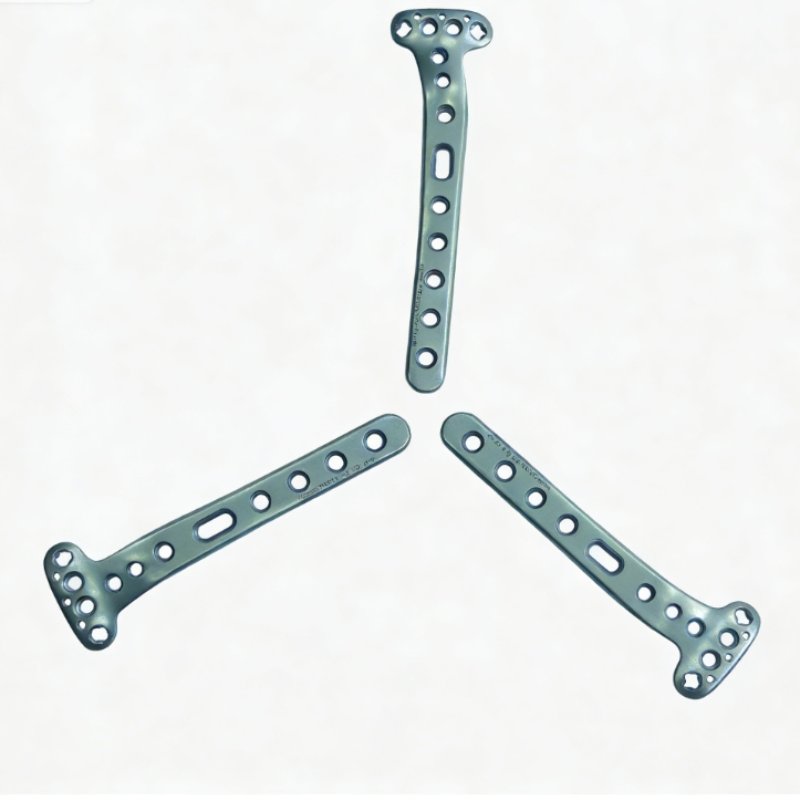

Pre-Contoured Medial Tibia Plateau Locking Plate

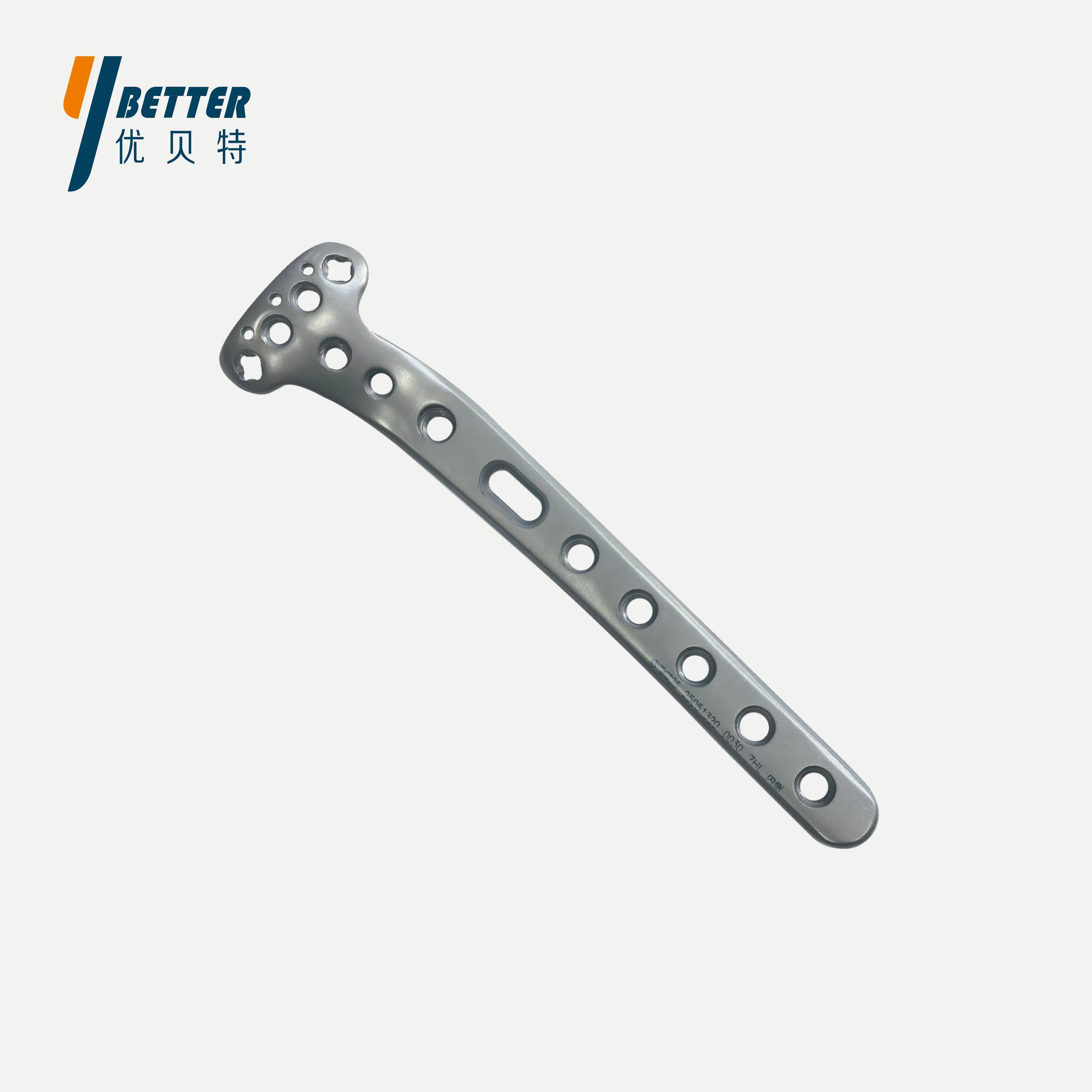

Tibia Plate View 1

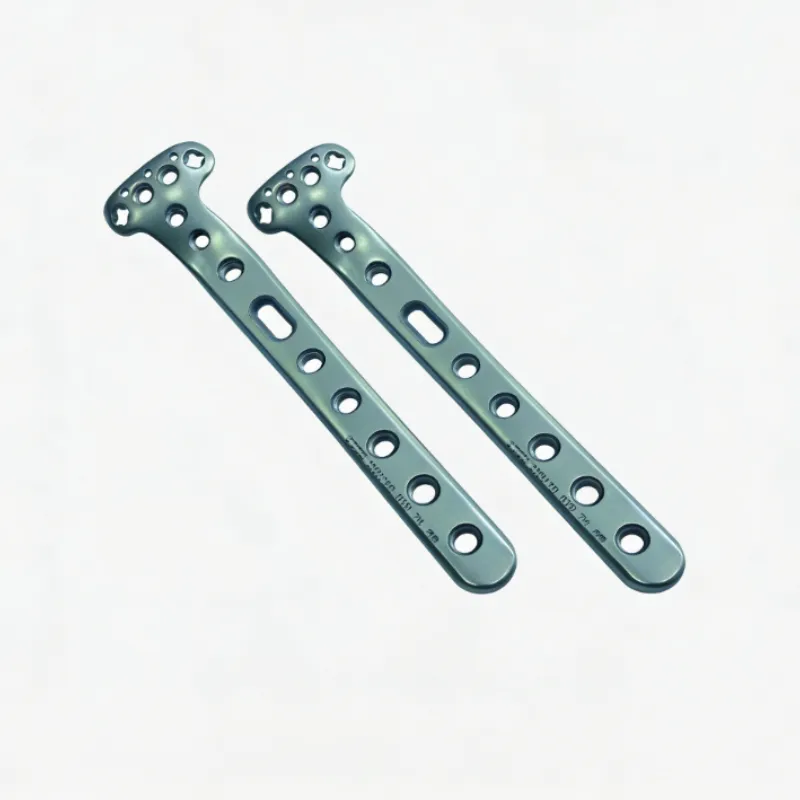

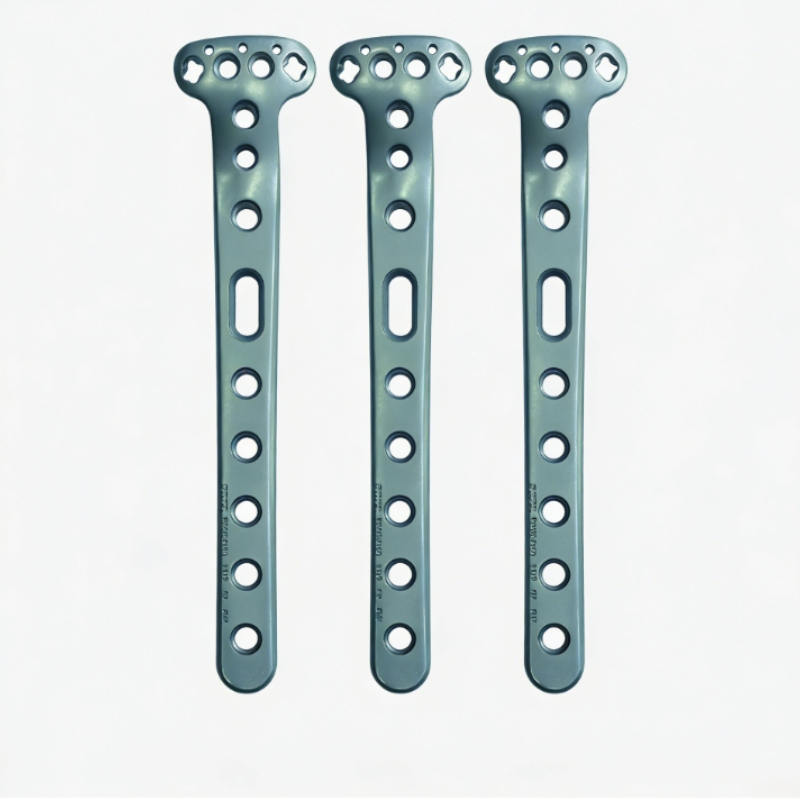

Tibia Plate View 2
The Tibia Plateau Medial Locking Plate is a specialized orthopedic implant designed to provide secure, anatomically contoured fixation for medial tibial plateau fractures and posteromedial fracture fragments. Engineered with a low-profile design and precise left/right specific contours, this plate optimally fits the medial tibial anatomy, minimizing soft tissue irritation and providing stable support for articular reconstruction. Its locking and non-locking screw options allow for versatile fixation strategies, including subchondral support and enhanced stability in osteoporotic bone.
Constructed from medical-grade titanium or stainless steel, the plate ensures strength, biocompatibility, and durability. It is particularly indicated for medial column stabilization in complex tibial plateau fractures, often used in conjunction with lateral plating for bicondylar injuries. The plate design supports both open and minimally invasive surgical approaches, aiding in anatomical restoration and early functional recovery.
Product NameTibia Plateau Medial Locking Plate
MaterialMedical-Grade Titanium Alloy (Ti-6Al-4V ELI) / Stainless Steel
Plate Thickness2.5–3.0 mm
Plate ContourAnatomic, left/right specific
Screw Compatibility3.5 mm and 4.0 mm locking screws; 3.5 mm cortex screws
Hole DesignCombination holes (locking + dynamic compression)
SterilizationPre-sterilized (Gamma / EO), single-use

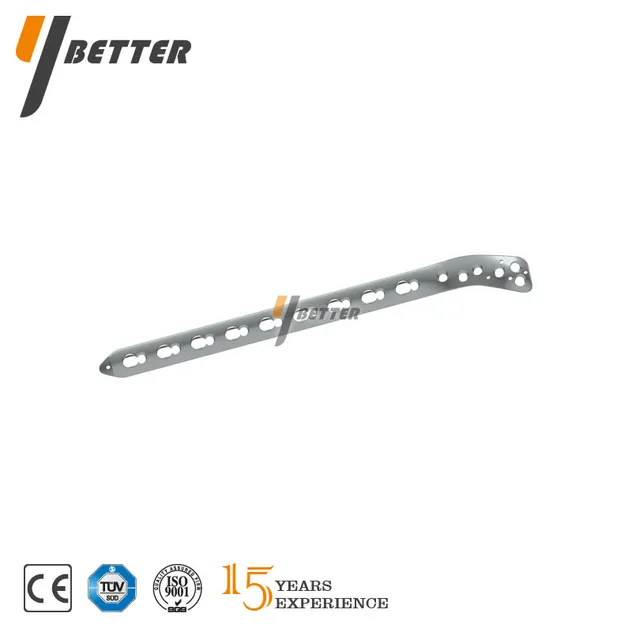

Proximal lateral locking plate
Proximal lateral locking plate of the tibia

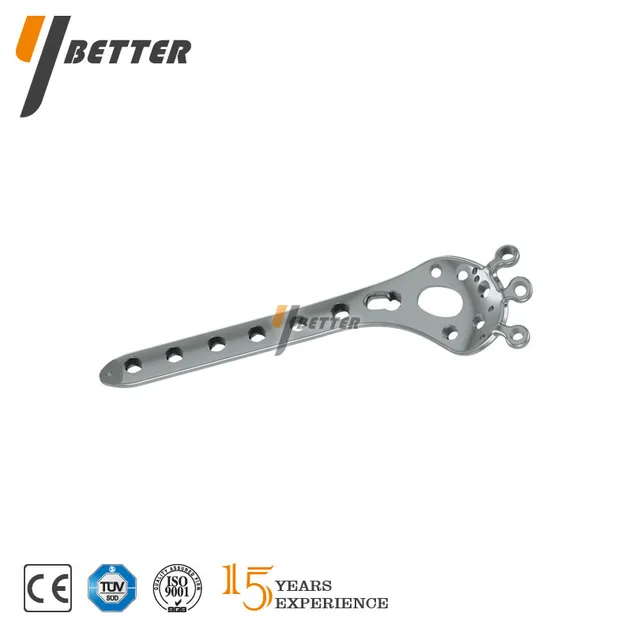

Posterior column locking plate
Posterior column locking plate of the tibial plateau

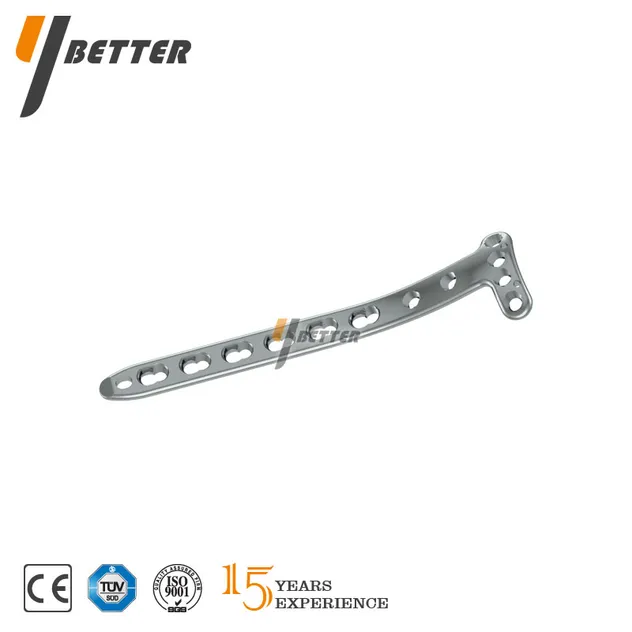

Medial locking plate
Medial locking plate for the tibial plateau

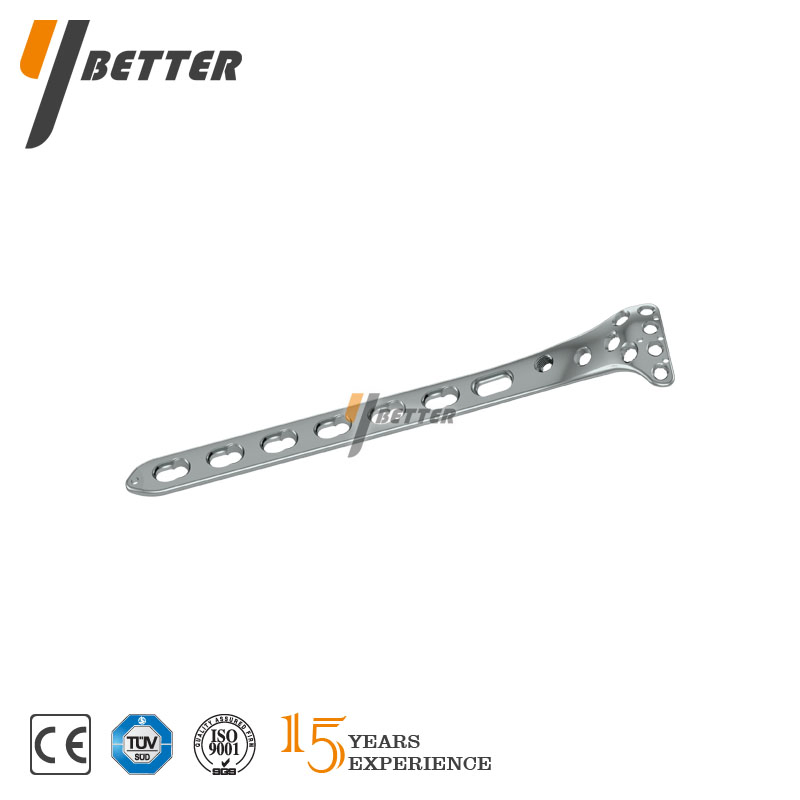

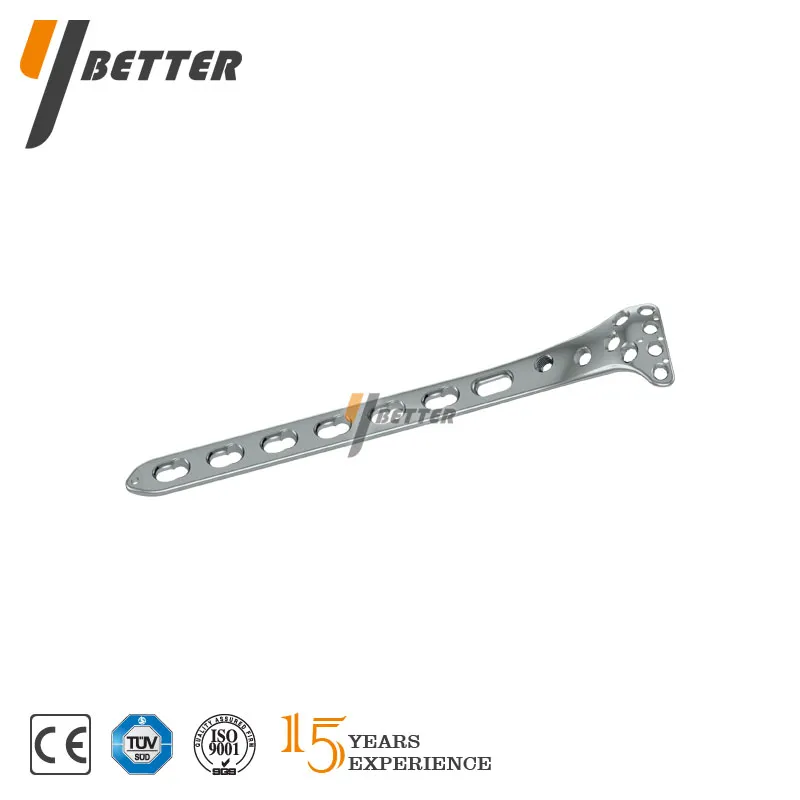

Lateral anatomical locking plate
Lateral anatomical locking plate

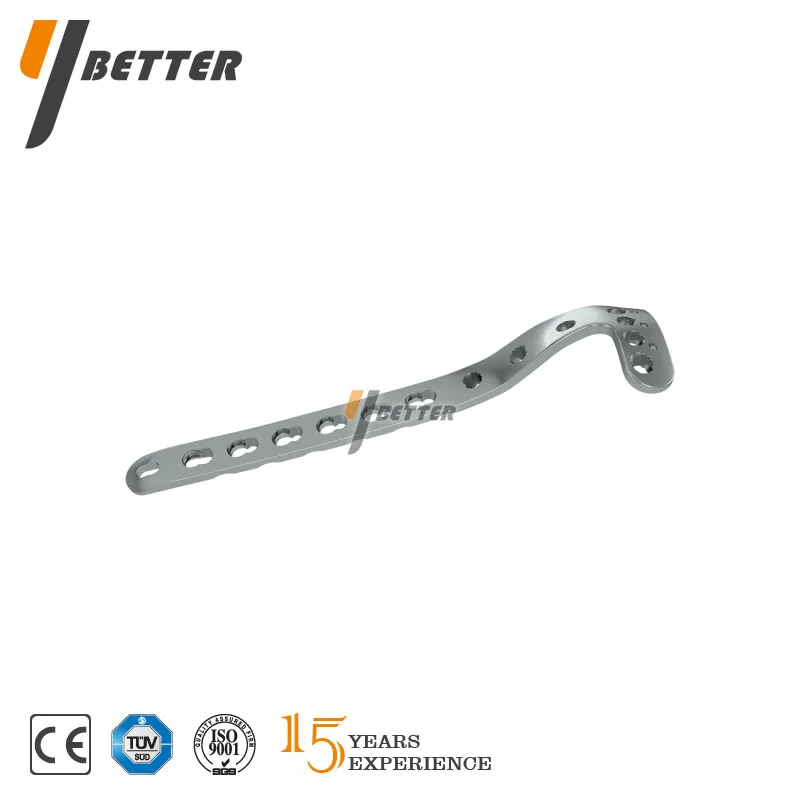

Lateral locking plate
Lateral locking plate of the tibial plateau

Main Products Portfolio

Orthopedic Portfolio

Corporate Overview

Corporate Building
Specializing in developing production and sales of orthopedic implants and instruments, the factory covers a ground space of 32,068 square meters. Meanwhile, we have a strong group of engineers and technicians. The company satisfies the customers' requirements with satisfied quality and favorable service, which is based on the advanced production & processing technology and the best testing equipment imported from Germany.
The main products include: Spinal fixation system, interlocking intramedullary nails, metal bone plates, metal bone screws and related operation instruments. Enterprise has passed ISO 9001 and ISO 13485 system certification, and products have passed the CE certification. We do business with customers from over 50 countries worldwide.

Factory & Production

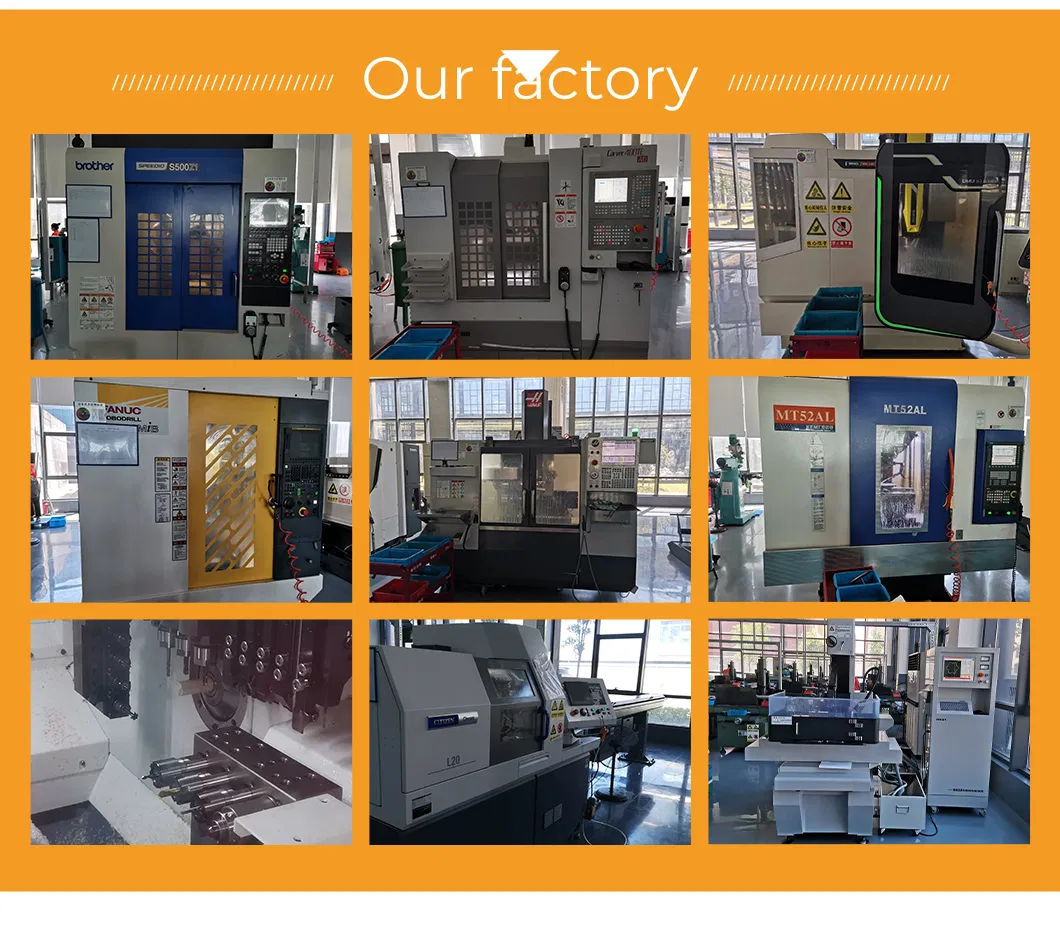

Factory Environment

Certifications & Advantages

Company Advantages
Certifications

Packaging & Logistics

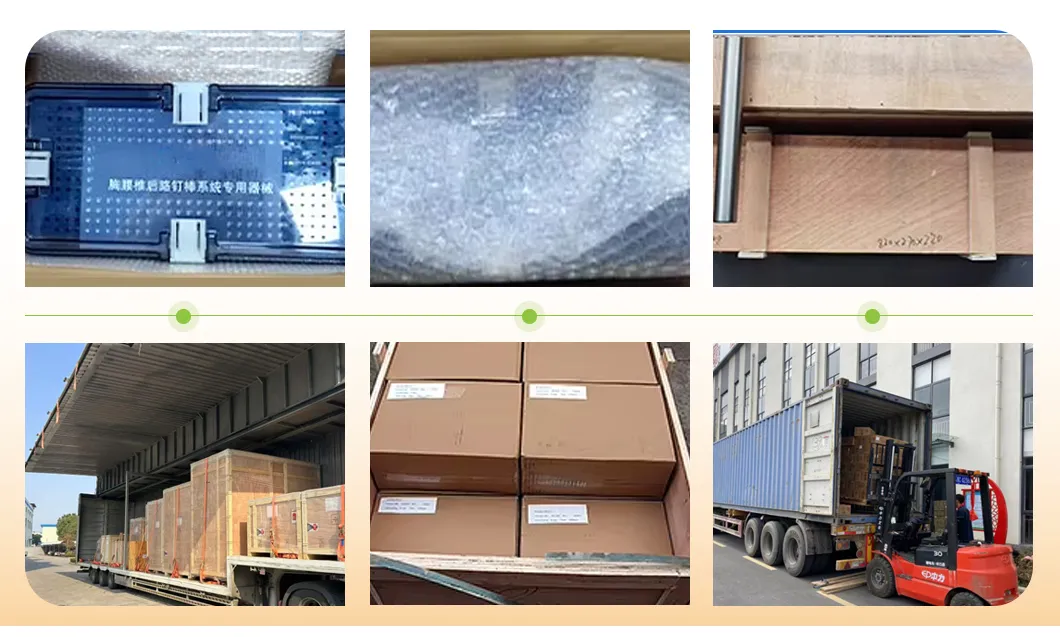

Packaging Process

Frequently Asked Questions

How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
What is the sample lead time?
For existing items, the sample time is within 3 days.
Can you provide OEM/Branding on products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Is color customization available?
Yes, the color of products can be customized if you can meet our MOQ requirements.
How do you guarantee product quality?
We implement strict detection during production and conduct thorough sampling inspections on all products before shipment to ensure intact packaging and high quality.
What materials are used for the plates?
Our plates are manufactured using medical-grade Titanium Alloy (Ti-6Al-4V ELI) or high-quality Stainless Steel for maximum biocompatibility and strength.
