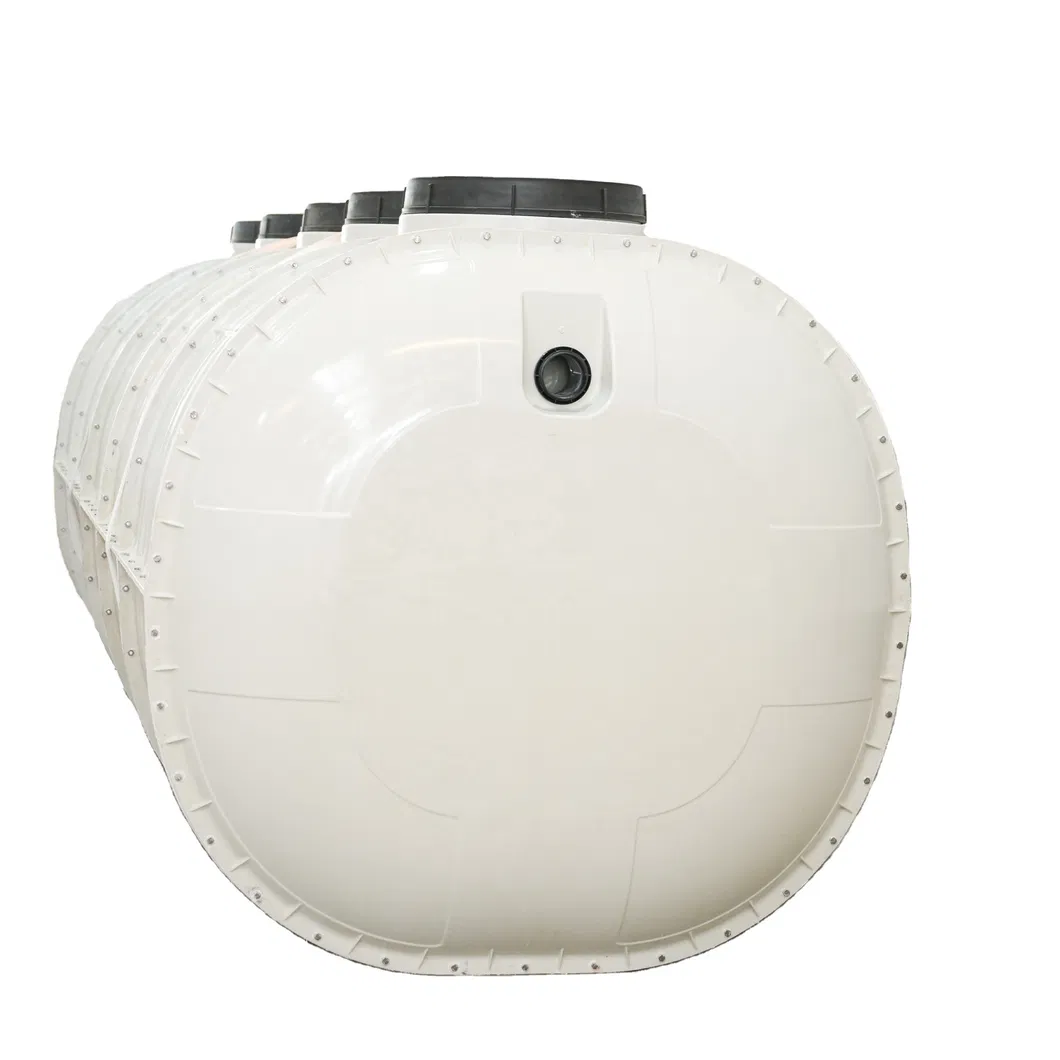

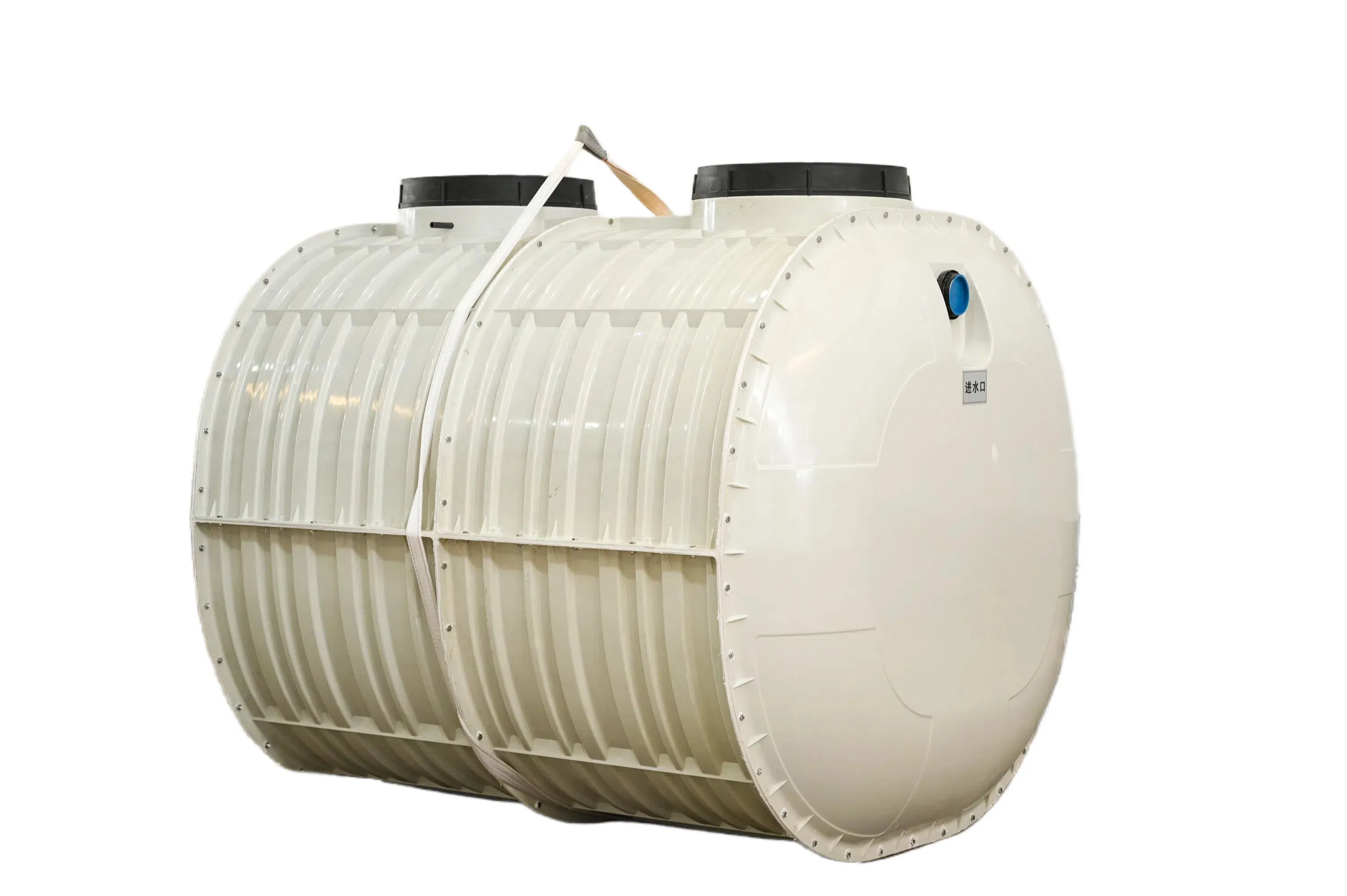

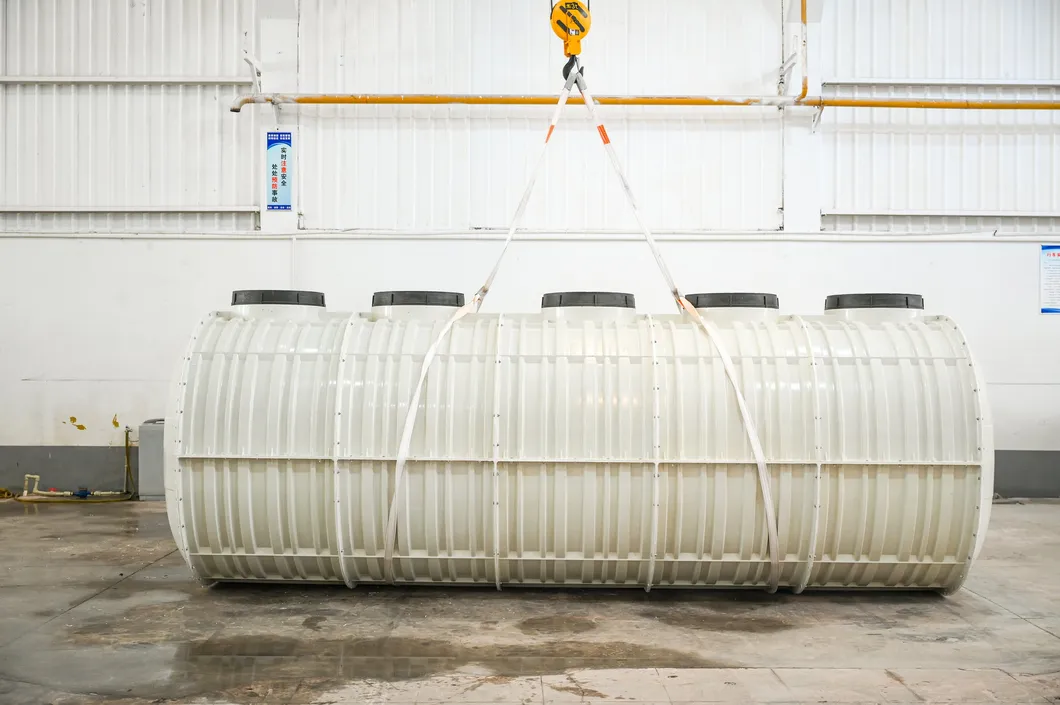

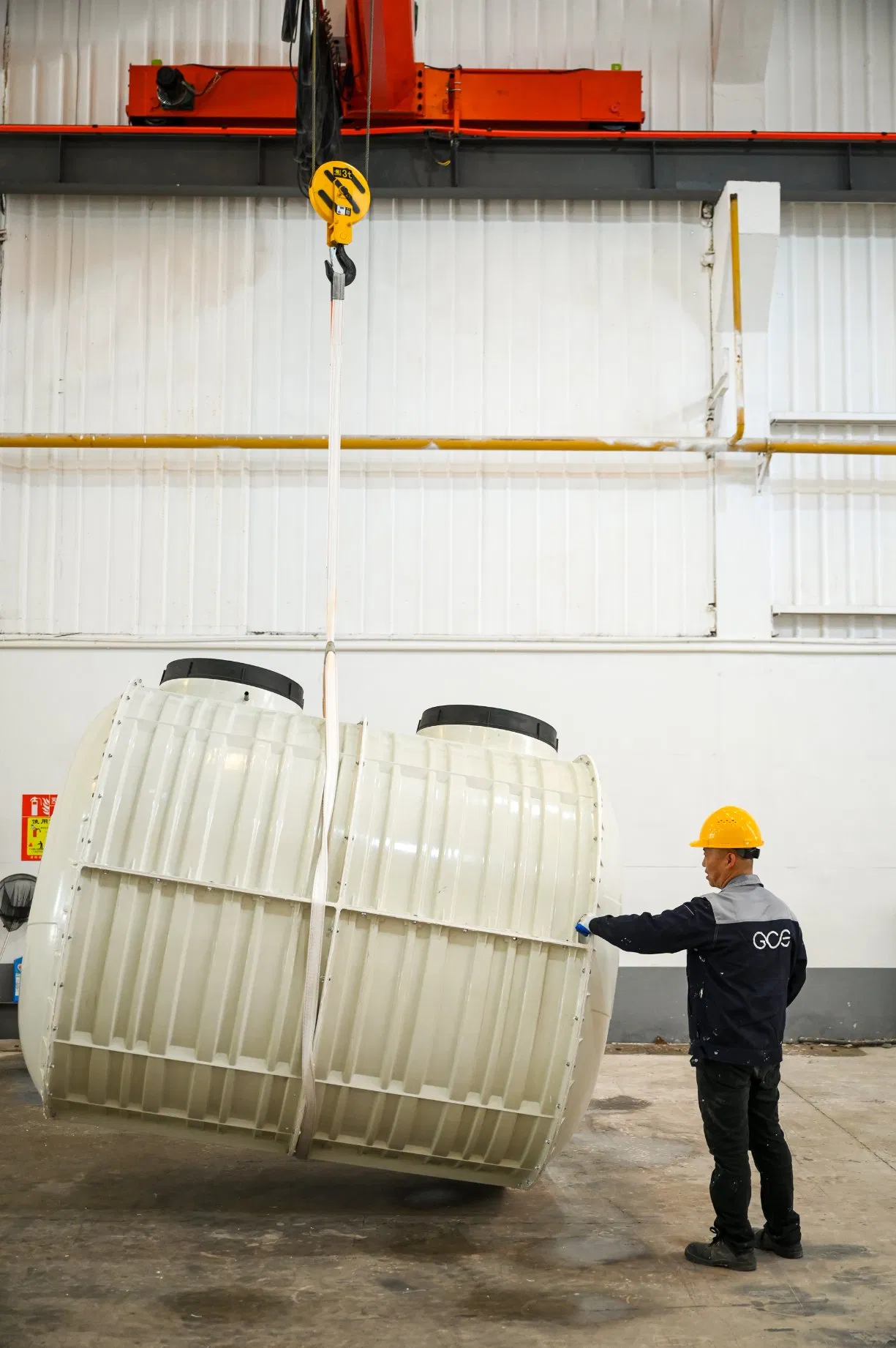

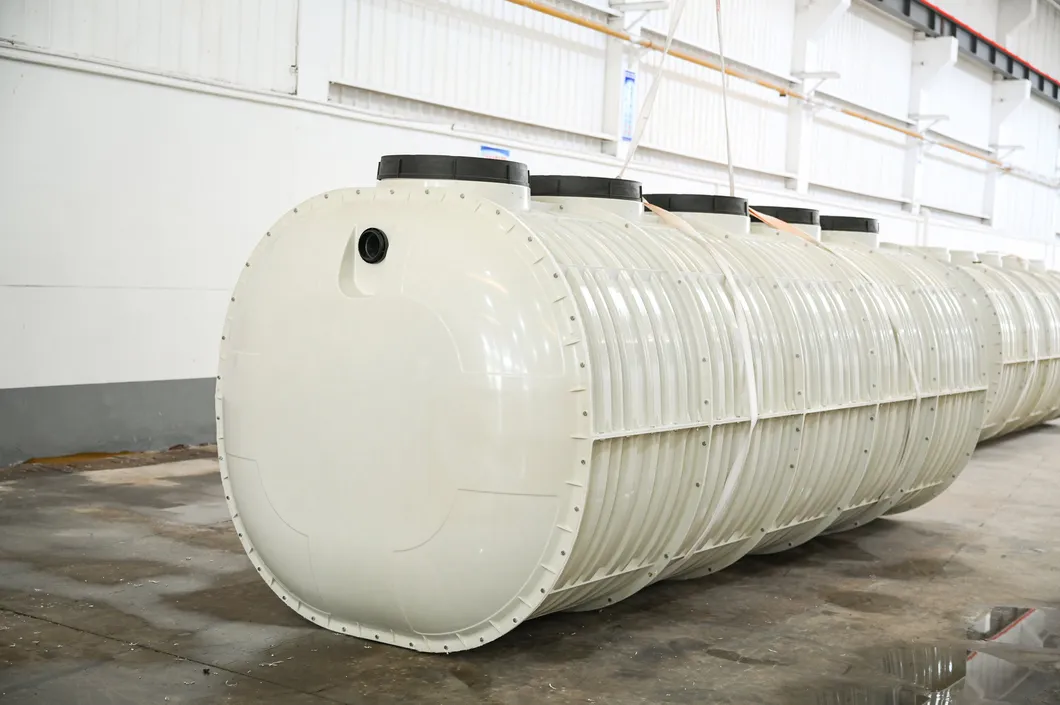

The sewage treatment tank is an upgraded product of an integrated domestic sewage treatment device, which has undergone multiple technological innovations and has been highly integrated. The SMC Sewage treatment tank is a kind of sewage integrated treatment equipment which has the characteristics of high efficiency nitrogen and phosphorus removal. It is suitable for use in domestic wastewater treatment, offering low-cost, low energy consumption, and easy maintenance.
Low investment, good treatment effects, short construction period, and easy maintenance.
Low power consumption and low daily operation costs.
Using SMC material mold casting with stable quality and service life over 30 years.
Use of Internet of Things (IoT) technology to realize remote mobile management.
SMC material adopts FRP mold casting process, improving mechanical property indexes. The tank body includes UP resin, glass fibers, and fillers to ensure strength and corrosion resistance.
| Name | Unit | Index |
|---|---|---|
| Density | g/cm3 | 1.75~1.95 |
| Water-absorbing quality | mg | <3 |
| Heat distortion temperature | ºC | ≥240 |
| Bending strength | MPa | 150~180 |
| Compressive strength | MPa | >140 |
| Glass fiber content | % | 25±2 |
| Capacity | 0.5m³/d | 1m³/d | 2m³/d | 5m³/d | 8m³/d |
|---|---|---|---|---|---|
| Size (cm) | 195*117*108 | 240*130*140 | 213*115*165 | 242*201*200 | 342*201*200 |
| Weight (kg) | 110 | 180 | 200 | 520 | 650 |
| Thickness | 7mm | 7mm | 6-7mm | 7mm | 7mm |

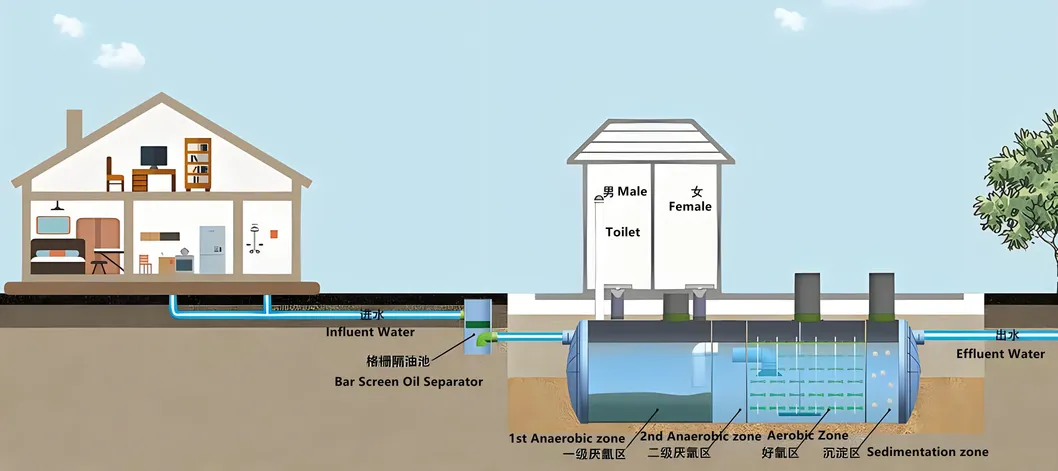

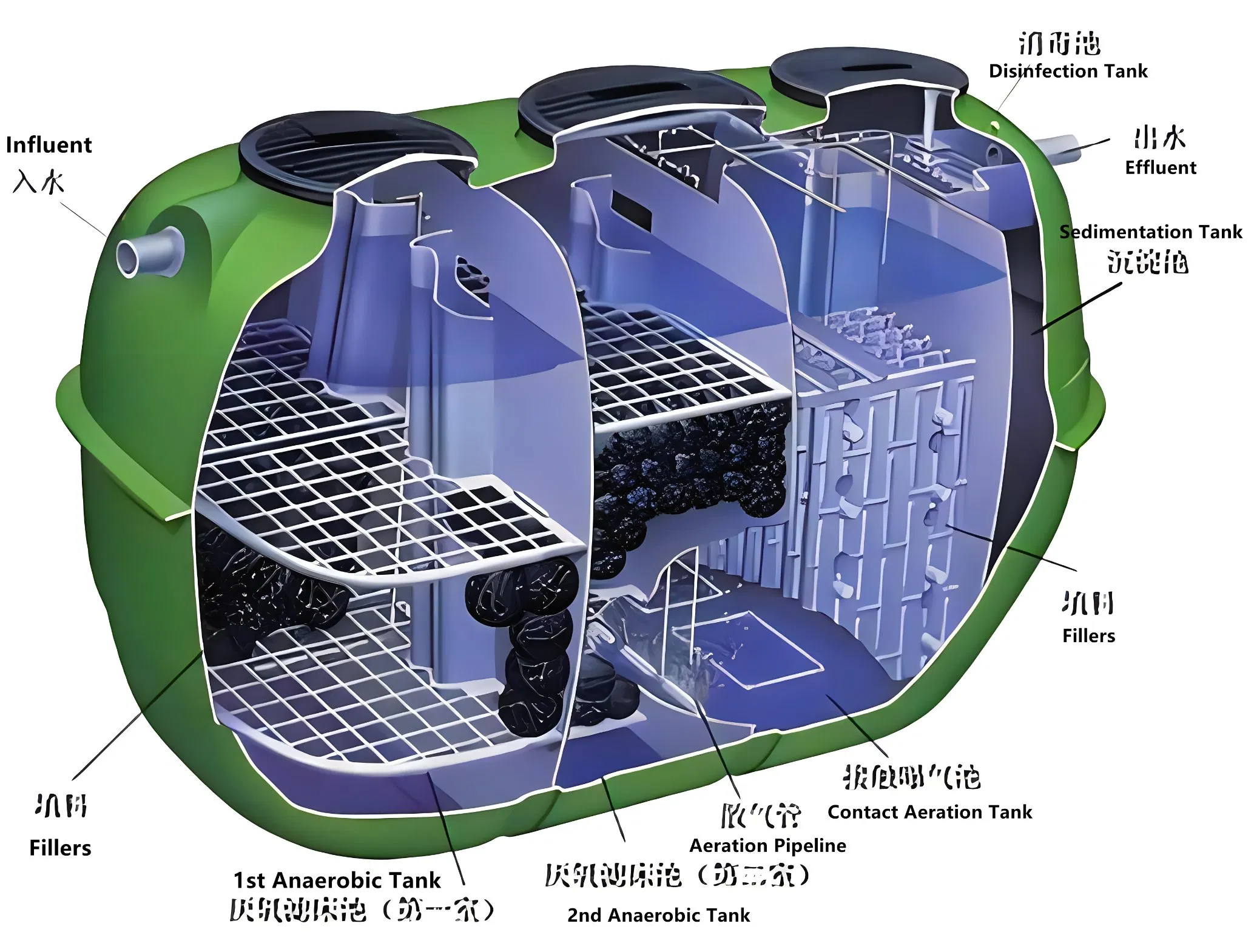

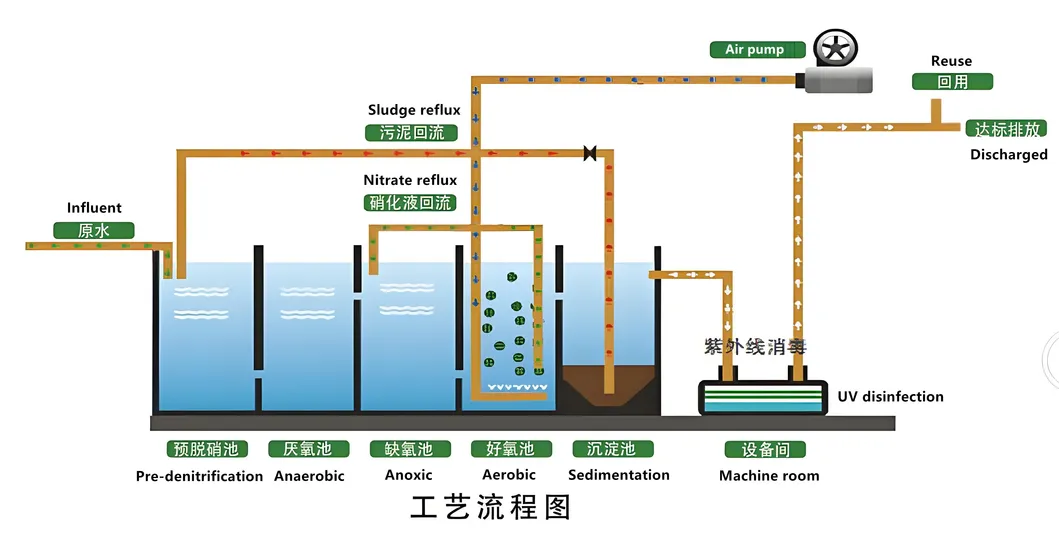

The SMC sewage treatment tank adopts the A2/O process, ensuring the removal of COD, ammonia nitrogen, total nitrogen, and phosphorus. Microorganisms grow on spherical filler media, allowing for stable operation and resistance to shock loads.
| Agents | Applications |
|---|---|
| Denitrifying agent | Ecological restoration of rivers, lakes, and domestic sewage treatment. |
| Polyphosphate agent | Removes phosphorus from eutrophic water bodies. |
| Oil removal agent | Treatment of rural tourism wastewater and oily wastewater. |
| Black & odorous removal | Restoration of polluted reservoirs and cellulose degradation. |
We are a comprehensive environmental protection enterprise integrating consulting, design, equipment manufacturing, and operation management. We focus on urban and rural environmental governance, industrial wastewater treatment, and water supply purification.
