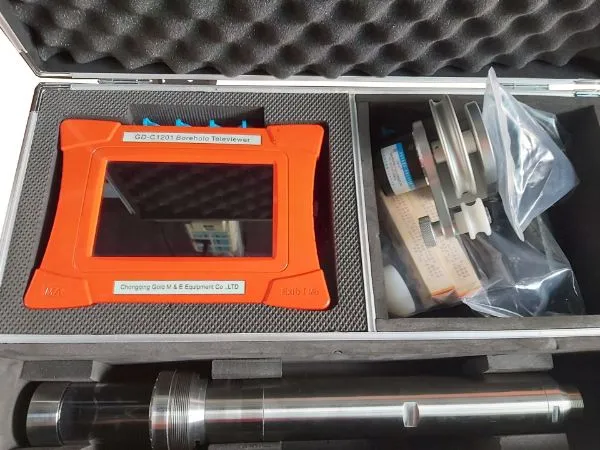

The GD-C1201 Intelligent Drillhole Optical Imager represents a quantum leap in borehole inspection technology, combining unprecedented imaging precision with robust field performance. This system is engineered to address the most challenging subsurface investigation scenarios, delivering laboratory-grade data quality in the most demanding environments.

• Ultra-High-Definition Imaging: Incorporates a sophisticated 1.34-megapixel CCD sensor with advanced processing for 0.1mm resolution accuracy. Integrated 30 Lux adjustable LED arrays ensure optimal illumination.
• Advanced Data Processing: Features an embedded ARM+DSP dual-core processor, delivering 25 times faster processing. Supports real-time 360-degree panoramic image stitching.
• Environmental Resilience: IP67-rated housing with a stainless steel probe that withstands 15MPa pressure. Operational range from -20°C to 40°C.
• Intelligent Software: TENSENSE2010 platform provides AI-powered lithology recognition and one-click reporting, reducing post-processing time by 70%.

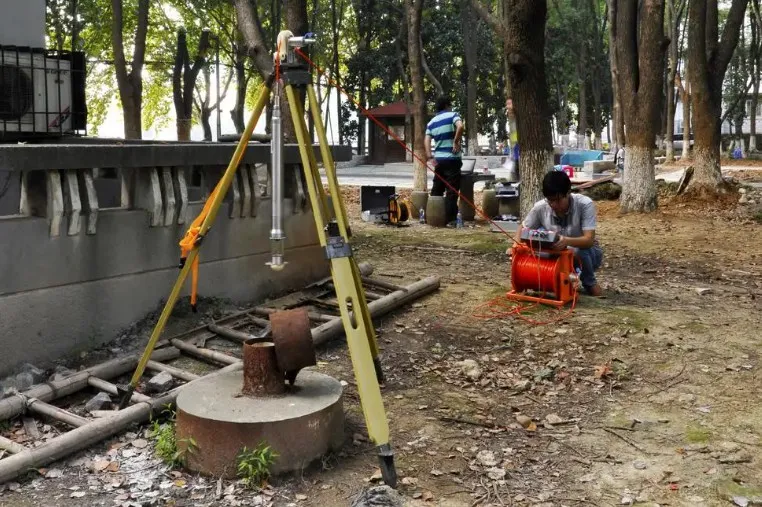

Geotechnical Engineering: Assessment of rock mass quality and fracture density for slope stability and foundation design.

Mineral Exploration: Detailed mapping of ore body geometry and vein structures with sub-millimeter accuracy using integrated 3D compasses.

Oil & Gas: Evaluation of wellbore integrity, casing conditions, and detection of corrosion features or sand production zones.

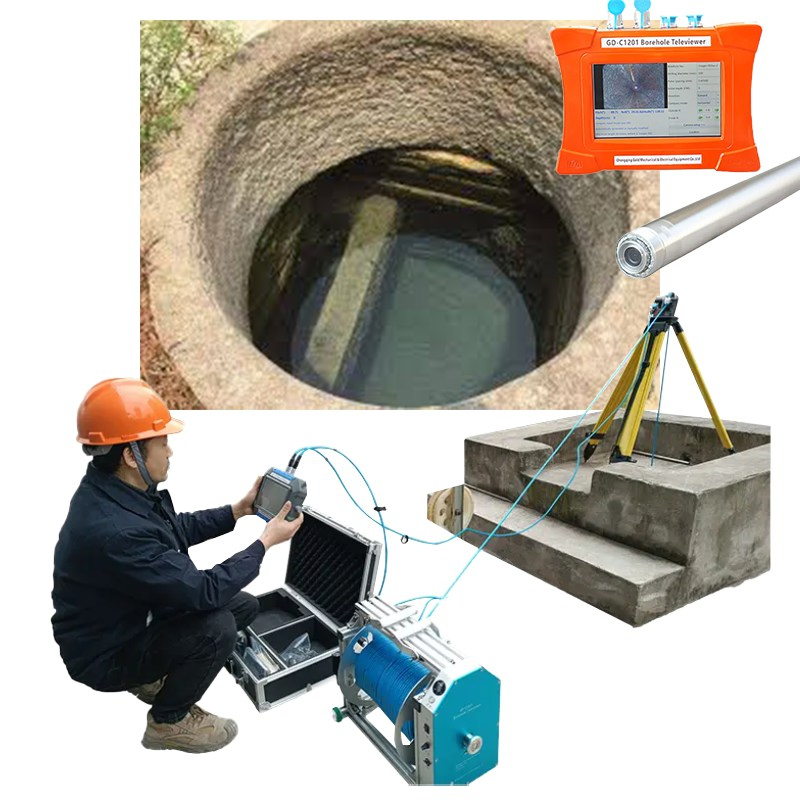

Civil Infrastructure: Non-destructive inspection of drilled shafts and tunnel linings to detect construction defects.
